Installing the seat surface cover for the rear seat bench
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

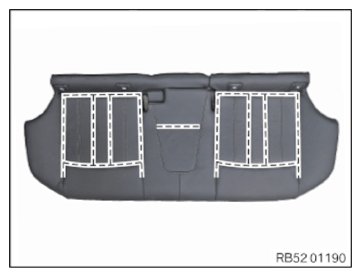

- Position the seat surface cover on the foam cushion.
- Secure all trim wires with clamps.
- Replace the clamps (2).
Parts: Clamp
- Insert the clamp (2) with the special tool 0 492 668 (52 0 050) .
- Cover the trim wire (3) of the foam cushion (1) and the trim wire (4) of the seat surface cover (5) using the clamp (2) and bend the clamp (2) to close it.
- Feed seat surface cover correctly into the foam cushion.

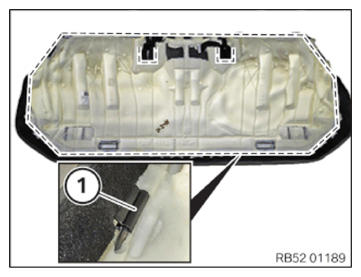

- Hook the seat surface cover onto the foam cushion with the holders (1).
Follow-up work
- Refer to INSTALLING ALL ISOFIX TRIMS .
- Refer to INSTALLING THE REAR SEAT BENCH .
