Install the control for the rear seat backrest
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

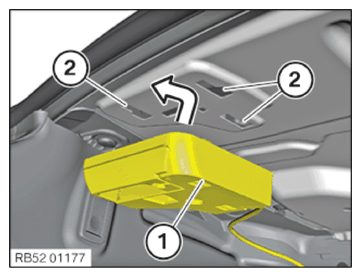

- Insert the control (1) into the openings (2) and slide it back.

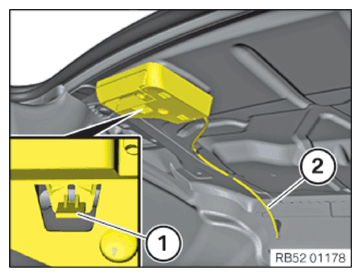

- Make sure the detent (1) is correctly positioned.
- Insert the Bowden cable (2) into the body.
Follow-up work
- Refer to INSTALLING THE BACKREST LOCK .
