Install the head restraint at the rear
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Installing the head restraint
NOTE:
Perform the steps on the left and right side.

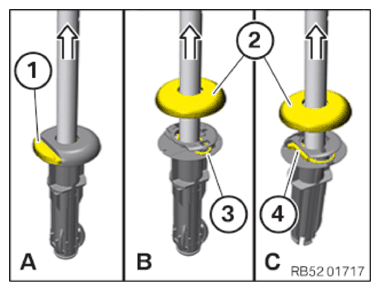

- Version A:
Press the lock (1) and install the head restraint in the direction opposite to the arrow direction.
- Version B:
Press the lock (3) and install the head restraint in the direction opposite to the arrow direction.
Clip in the cover (2).
- Version C:
Press the lock (4) and install the head restraint in the direction opposite to the arrow direction.
Clip in the cover (2).
- Insert the head restraint (1) from above and use the appropriate version.
- Make sure the head restraint (1) is correctly seated on the locks present.
