Remove the backrest frame for the center rear seat backrest

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work

Refer to REMOVING REAR SEAT BENCH .
Refer to REMOVING LEFT BACKREST SIDE SECTION .
Refer to REMOVING REAR SEAT BACKREST, LEFT .
Refer to REMOVING THE REAR SEAT BACKREST AT THE CENTER .
Refer to REMOVING THE REAR MIDDLE HEAD RESTRAINT .
Refer to REMOVING REAR PANEL ON THE CENTER REAR SEAT BACKREST .

Unclip the trim (1) from the backrest frame.

Courtesy of BMW OF NORTH AMERICA, INC.
Remove the trim (1) in the direction of the arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

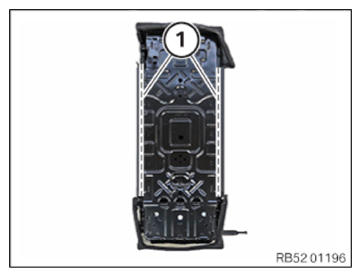

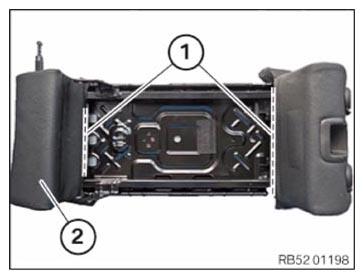

Detach the seat cover in the marked area (1).
Feed the cushion (2) out and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Removing the guide sleeve for the rear head restraint

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

NOTE: The description is provided only at one component. The procedure is the same for all other components.

Push the detent (1) inward with the special tool 0 494 627 (52 0 070) .
Remove the guide sleeve towards the top.

Courtesy of BMW OF NORTH AMERICA, INC.

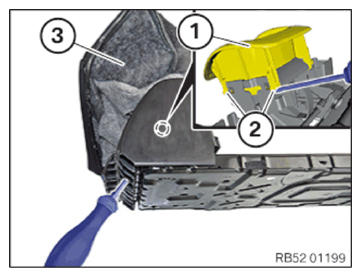

Unclip the trim (1) from the bottom on the left and right retaining lugs (2).
Remove the trim (1) and the seat cover (3).

Courtesy of BMW OF NORTH AMERICA, INC.

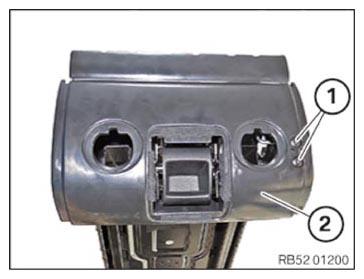

Loosen screws (1).
Remove the insert (2).

Courtesy of BMW OF NORTH AMERICA, INC.
