Remove cupholder

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

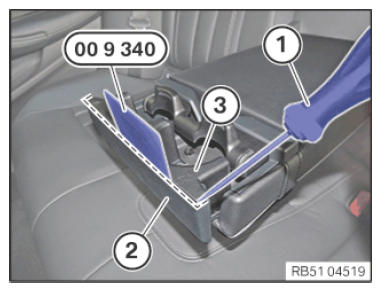

Insert the screwdriver (1) on the side between the lid (2) and the insert (3).
Raise the insert (3) slightly with the screwdriver (1).
Insert the special tool 0 493 687 (00 9 340) in front and detach the insert (3) from the detents toward the top.
Remove the insert (3) completely.

Courtesy of BMW OF NORTH AMERICA, INC.

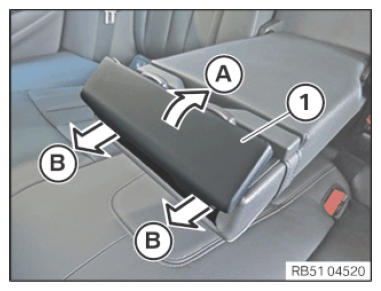

First, fold the lid (1) toward the back (A) and then remove it toward the front (B).

Courtesy of BMW OF NORTH AMERICA, INC.

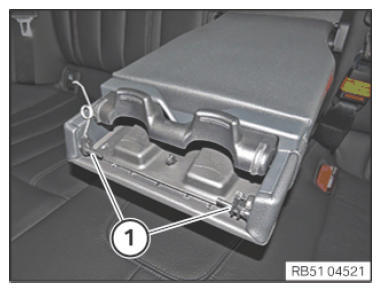

Remove the hinges (1) inward.

Courtesy of BMW OF NORTH AMERICA, INC.

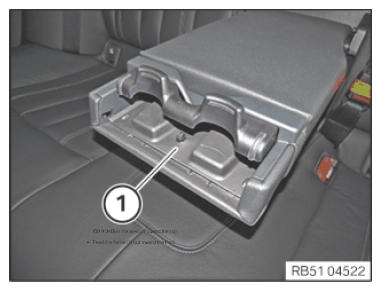

Guide out the rubber mat (1).

Courtesy of BMW OF NORTH AMERICA, INC.

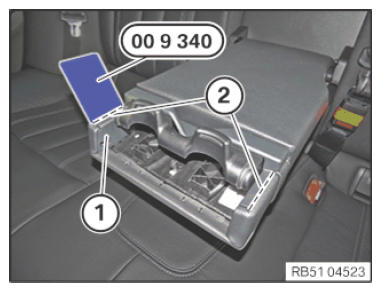

Unclip the frame (1) with the special tool 0 493 687 (00 9 340) in the area (2) toward the top .
Feed the frame (1) out toward the front.

Courtesy of BMW OF NORTH AMERICA, INC.
