Install the cup holder

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

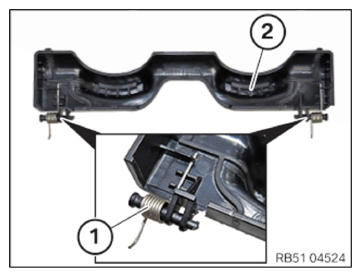

Insert the springs (1) on the left and right in the front section (2).
Make sure the springs (1) are positioned correctly.

Courtesy of BMW OF NORTH AMERICA, INC.

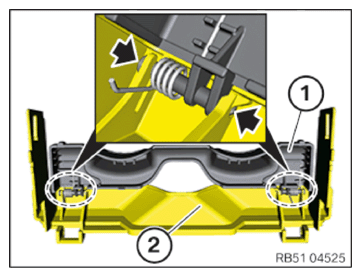

Clip in the front section (1) in the frame (2).

Courtesy of BMW OF NORTH AMERICA, INC.

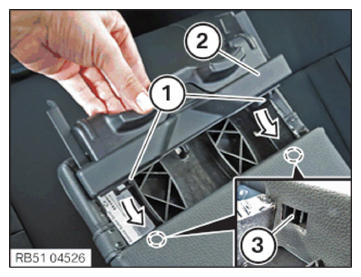

Insert the guides (1) of the frame (2) in the associated mountings (3).

Courtesy of BMW OF NORTH AMERICA, INC.

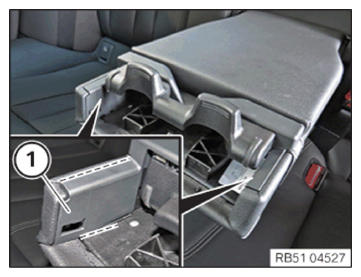

Clip in the frame (1) in the marked area completely in the center armrest.

Courtesy of BMW OF NORTH AMERICA, INC.
Insert the rubber mat (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Insert the right hinge (1) with the associated spring.
Insert the left hinge (1) without spring.

Courtesy of BMW OF NORTH AMERICA, INC.

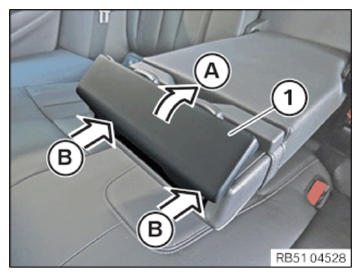

Insert the lid (1) folded back (A) into the hinges (B).

Courtesy of BMW OF NORTH AMERICA, INC.
Open the lid (1) and check for correct fit at the hinges (2).

Courtesy of BMW OF NORTH AMERICA, INC.

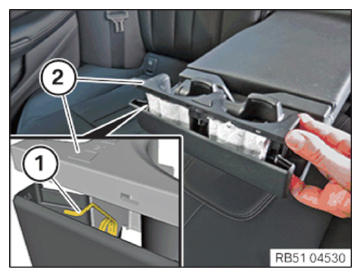

Fold the spring (1) forward and guide in the insert (2) from the top.
Make sure that the spring (1) is fed in under the insert (2).

Courtesy of BMW OF NORTH AMERICA, INC.

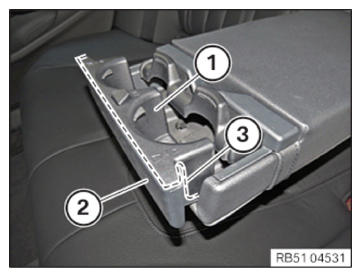

Clip the insert (1) completely into the lid (2).
Make sure the detent and gap in the area (3) are correct.

Courtesy of BMW OF NORTH AMERICA, INC.
