Installing the pneumatic pump of the front seat
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

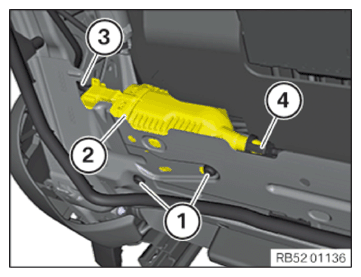

- Check the hose connection (4) for damage.
- Connect the hose connection (4) with the pneumatic pump (2).
- Connect connectors (3) and lock.
- Insert the pneumatic pump (2).
- Tighten down screws (1).
TIGHTENING TORQUES SPECIFICATION
| Lumbar support pump to seat frame |
| tightening torque |
3.3 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
Follow-up work
