Install pneumatic seat mat of the seat surface

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

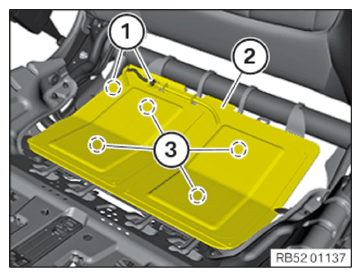

Clip in the pneumatic seat mat (2) at the detents (3).
Check the hose connections (1) for damage.
Connect the hose connections (1).

G14382933

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to FITTING THE SEAT COVER WITH THE CUSHION FOR THE FRONT SEAT .
Refer to INSTALLING THE SUPPORT FOR THE OUTER COVER ON THE FRONT SEAT .
Refer to INSTALLING OPERATING UNIT FOR THE SEAT ADJUSTMENT .
Refer to INSTALLING OUTER COVER ON FRONT SEAT .
Refer to INSTALLING INNER COVER ON FRONT SEAT .
