Replacing the cushion for the front seat backrest

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work

Refer to REMOVING REAR MONITOR .
Refer to REMOVING FRONT SEAT .
Refer to REMOVING OUTER COVER ON FRONT SEAT .
Refer to REMOVING INNER COVER ON FRONT SEAT .
Refer to REMOVING THE TOP REAR PANEL FROM THE FRONT SEAT REAR PANEL .
Refer to REMOVING THE REAR PANEL AT THE BOTTOM OF THE FRONT SEAT REAR PANEL .
Refer to REMOVING THE CRASH-ACTIVE HEAD RESTRAINT FOR THE FRONT SEAT .
Refer to REMOVING THE DRIVE FOR THE HEADREST HEIGHT ADJUSTMENT ON THE FRONT SEAT .
Removing side airbag from front seat.
WARNING:
Airbag unit.

Danger! Immobilization period-threatening injuries!
- Before working on the airbag, disconnect the negative battery cable from the battery.
- Airbag unit may only be set down with the cushion (airbag itself) facing upwards.
- For additional information see: 72 00 SAFETY REGULATIONS ON HANDLING COMPONENTS WITH GAS GENERATORS .
WARNING:
Pyrotechnic components.

Danger! Immobilization period-threatening injuries!
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
- Replace any damaged part or ones that have been dropped.
- For additional information see: 72 00 SAFETY REGULATIONS ON HANDLING COMPONENTS WITH GAS GENERATORS .
Courtesy of BMW OF NORTH AMERICA, INC.
- Detach the backrest cover (1) in signaled area.
Courtesy of BMW OF NORTH AMERICA, INC.
- Loosen clip (1).
- Detach the backrest cover (2) in this area (3).
Courtesy of BMW OF NORTH AMERICA, INC.
- Unlock plug connection (1) and disconnect.
- Cover the area around the rivet head (2).
- Drill out the rivet head (2).
- Remove the airbag module from the backrest frame and lining pocket (3) in the direction of the arrow.
- Fully remove rivet remnants.
Refer to REMOVING THE BACKREST COVER WITH THE UPHOLSTERY FOR THE FRONT SEAT .
Refer to REMOVING THE BACKREST COVER FOR THE FRONT SEAT .

NOTE: TECHNICAL INFORMATION
The heating mat is glued to the foam pad and cannot be dismantled non-destructively.
When replacing the heating mat, a new one must always be installed with a new foam pad.

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Version with seat climate control:
Push the heating mat (1) and upholstery (2) towards the side.

Unclip the fan (3) .

Replace the cushion (2) .

Parts: Upholstery

Courtesy of BMW OF NORTH AMERICA, INC.
Version with seat climate control:
Clip the fan (1) into the cushion (2) .

Courtesy of BMW OF NORTH AMERICA, INC.
Version with seat climate control:
If applicable, cut the support (1) to fit the upholstery (2) .

Secure the support (1) to the Velcro fasteners (3) .

Courtesy of BMW OF NORTH AMERICA, INC.

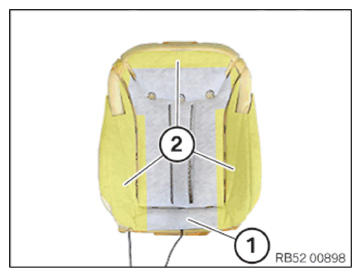

Version with seat heating:
Position the heating mat (1) on the cushion and align.

Bond the heating mat (1) with adhesive in the areas (2) with the cushion.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE BACKREST COVERING FOR THE FRONT SEAT .
Refer to INSTALLING THE BACKREST COVER WITH THE CUSHION FOR THE FRONT SEAT .
Installing side airbag on front seat.
WARNING:
Airbag unit.

Danger! Immobilization period-threatening injuries!
- Before working on the airbag, disconnect the negative battery cable from the battery.
- Airbag unit may only be set down with the cushion (airbag itself) facing upwards.
- For additional information see: 72 00 SAFETY REGULATIONS ON HANDLING COMPONENTS WITH GAS GENERATORS .
WARNING:
Pyrotechnic components.

Danger! Immobilization period-threatening injuries!
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
- Replace any damaged part or ones that have been dropped.
- For additional information see: 72 00 SAFETY REGULATIONS ON HANDLING COMPONENTS WITH GAS GENERATORS .
Courtesy of BMW OF NORTH AMERICA, INC.
- Feed side airbag in the arrow direction into the backrest frame and the upholstery pocket (3).
- Make sure the guide (4) is positioned correctly.
- Renew the blind rivet (2)
  Parts: Blind rivet
- Secure the side airbag using the blind rivet (2).
- Unlock plug connection (1) and disconnect.
Courtesy of BMW OF NORTH AMERICA, INC.
- Attach the backrest cover (2) in this area (3).
- Insert the clip (1).
Courtesy of BMW OF NORTH AMERICA, INC.
- Attach the backrest cover (1) in the signaled area.
Refer to INSTALLING THE DRIVE FOR THE HEAD RESTRAINT HEIGHT ADJUSTMENT ON THE FRONT SEAT .
Refer to INSTALLING THE CRASH-ACTIVE HEAD RESTRAINT FOR THE FRONT SEAT .
Refer to INSTALLING THE BOTTOM REAR PANEL ON THE FRONT SEAT REAR PANEL .
Refer to INSTALLING THE TOP REAR PANEL ON THE FRONT SEAT REAR PANEL .
Refer to INSTALLING INNER COVER ON FRONT SEAT .
Refer to INSTALLING OUTER COVER ON FRONT SEAT .
Refer to INSTALLING FRONT SEAT .
Refer to INSTALLING THE REAR MONITOR .
