Installing the front seat trim (M CFRP bucket seat)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RISK OF DAMAGE
Damage of high-quality surfaces .
Plastic wedges can damage high-quality surfaces .
Damage of high-quality surfaces .
Plastic wedges can damage high-quality surfaces .
- Protect surfaces from damage.
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components .
Scratches, surface damage .
Careless handling of tools and sharp-edged components .
Scratches, surface damage .
- Protect working area.
- Handle tools and components carefully.
- Position the seat trim (1) as shown.

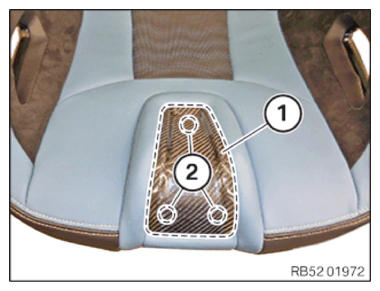

- Carefully clip in the front seat trim (1) in the marked area in the detents (2).

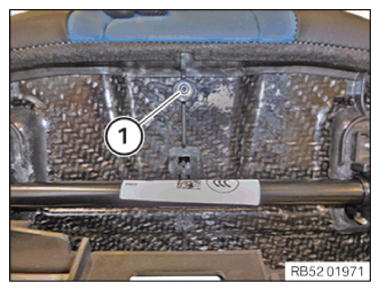

- Tighten the screws (1).
TIGHTENING TORQUES SPECIFICATION
| Front seat trim to seat frame | ||
|---|---|---|
| Screw | Tightening torque | 3.0 Nm |
