Installing the seat cover for the front seat
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

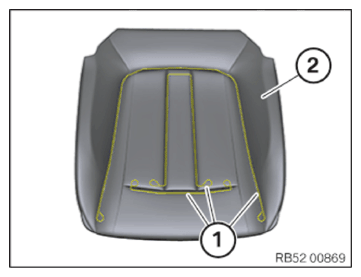

- Place the seat cover (2) on the cushion.
- Secure all trim wires (1) with clamps.
- Replace the clamps (2).
Parts: Clamps
- Insert the new clamp (2) with the special tool 0 492 668 (52 0 050) .
- Cover the trim wire (3) of the cushion (1) and the trim wire (4) of the seat cover with the clamp (2) and bend the clamp (2) shut.
| 1 | Upholstery |
| 2 | Clamp |
| 3 | Trim wire in cushion |
| 4 | Trim wire in seat cover |
| 5 | Seat cover |
Follow-up work
- Refer to FITTING THE SEAT COVER WITH THE UPHOLSTERY FOR THE FRONT SEAT .
- Refer to INSTALLING THE SUPPORT FOR THE OUTER COVER ON THE FRONT SEAT .
- Refer to INSTALLING OPERATING UNIT FOR THE SEAT ADJUSTMENT .
- Refer to INSTALLING OUTER COVER ON FRONT SEAT .
- Refer to INSTALLING INNER COVER ON FRONT SEAT .
- Refer to INSTALLING FRONT SEAT .
