Remove Natural Vacuum Leak Detection (Natural Vacuum Leak Detection) pressure switch

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work

Refer to REMOVING THE REAR RIGHT WHEEL .
Refer to REMOVING RIGHT REAR WHEEL ARCH COVER .

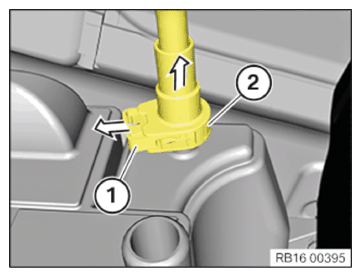

Unlock the locking tab (1) towards the bottom.
Operate push-button (2) and detach tank vent line.

Courtesy of BMW OF NORTH AMERICA, INC.

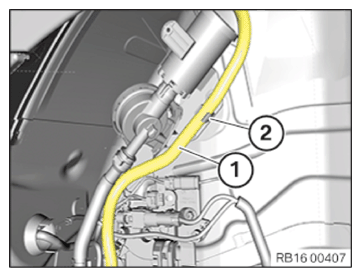

Detach tank vent line (1) from holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.

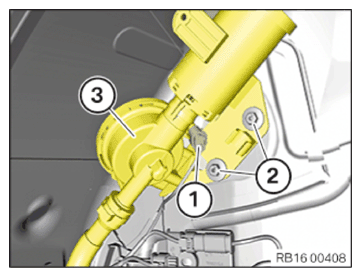

Disconnect plug connection (1).
Release nuts (2) and remove pressure switch (3) with dust filter and tank vent line.

Courtesy of BMW OF NORTH AMERICA, INC.
