Install Natural Vacuum Leak Detection (Natural Vacuum Leak Detection) pressure switch
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
- Install pressure switch (3) with dust filter and tank vent valve.
- Place and tighten nuts (2).
TIGHTENING TORQUES SPECIFICATION
| Pressure switch for Natural Vacuum Leak Detection (NVLD) on the body | ||
| Replace plastic nut. | Tightening torque | 4 Nm |
- Connect the plug connection (1).
- Attach tank vent line (1) to holder (2).

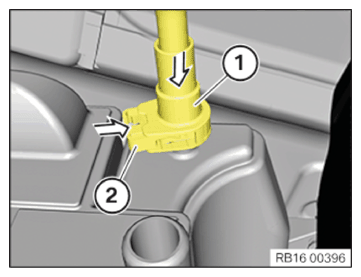

- Attach tank vent line (1) and lock.
- Lock locking tab (2).
Follow-up work
- Refer to INSTALLING THE REAR WHEEL ARCH COVER ON THE RIGHT .
- Refer to MOUNTING THE REAR RIGHT WHEEL .
