Removing the fuel supply line at the rear
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Hot exhaust system.
Risk of burning!
Risk of burning!
- Any work must exclusively be carried out with an exhaust system that has cooled down.
Preliminary work
- Refer to SUCTIONING THE FUEL TANK .
- Refer to REMOVING THE REAR RIGHT WHEEL .
- Refer to REMOVING RIGHT REAR WHEEL ARCH COVER .
- Refer to REMOVING REAR SEAT BENCH .
- Refer to DISCONNECTING DELIVERY UNIT .
- Refer to REMOVING THE REAR DIFFUSER .
- Refer to REMOVING THE UNDERSHIELD ON THE LEFT FUEL TANK .
- Refer to REMOVING UNDERSHIELD ON THE FUEL TANK ON THE RIGHT .
- Refer to REMOVING REINFORCEMENT STRUT .
- Refer to REMOVING REAR TUNNEL CONNECTING SUPPORT .
- Refer to REMOVING EXHAUST SYSTEM .
- Refer to REMOVING THE HEAT SHIELDS .
- Refer to REMOVING THE COMPLETE PROP SHAFT .
- Refer to REMOVING TANK COVER ON LEFT AND RIGHT .
- Refer to REMOVING FUEL TANK .
- Refer to REMOVING SIDE UNDERBODY PLANKING .

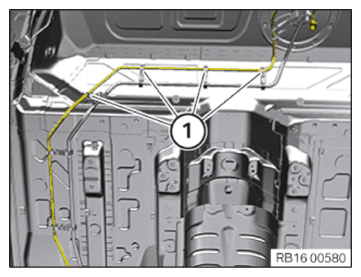

- Unclip the fuel supply line from the holders (1) .
- Unlock and disconnect snap fastener (1) .
- Unclip the fuel supply line from the holders (2) .
