Remove the front purge air line
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Hot exhaust system.
Risk of burning!
Risk of burning!
- Any work must exclusively be carried out with an exhaust system that has cooled down.
WARNING:
Hot fluids.
Risk of scalding!
Risk of scalding!
- Conduct all work in the vehicle wearing appropriate personal protective equipment only.
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Preliminary work
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to SUCTIONING THE FUEL TANK .
- Refer to REMOVING THE REAR RIGHT WHEEL .
- Refer to REMOVING RIGHT REAR WHEEL ARCH COVER .
- Refer to REMOVING REAR SEAT BENCH .
- Refer to DISCONNECTING DELIVERY UNIT .
- Refer to REMOVING THE REAR DIFFUSER .
- Refer to REMOVING THE UNDERSHIELD ON THE LEFT FUEL TANK .
- Refer to REMOVING UNDERSHIELD ON THE FUEL TANK ON THE RIGHT .
- Refer to REMOVING REINFORCEMENT STRUT .
- Refer to REMOVING REAR TUNNEL CONNECTING SUPPORT .
- Refer to REMOVING EXHAUST SYSTEM .
- Refer to REMOVING THE HEAT SHIELDS .
- Refer to REMOVING THE COMPLETE PROP SHAFT .
- Refer to REMOVING TANK COVER ON LEFT AND RIGHT .
- Refer to REMOVING FUEL TANK .
- Refer to REMOVING SIDE UNDERBODY PLANKING .
- Refer to REMOVING THE FRONT LEFT WHEEL .
- Refer to REMOVING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER FRONT .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING THE COVER PANEL OF THE SLAVE DME CONTROL DEVICE .
- Refer to REMOVING HOLDER OF DME CONTROL UNIT FOR CYLINDERS 5 TO 8 .
- Refer to REMOVING COOLANT EXPANSION TANK .

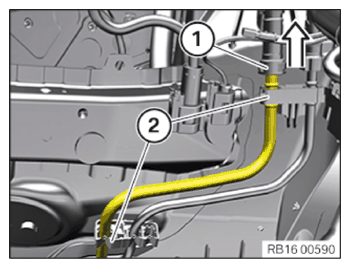

- Unlock and disconnect snap fastener (1) .
- Unclip the purge air line from the holder (2) .

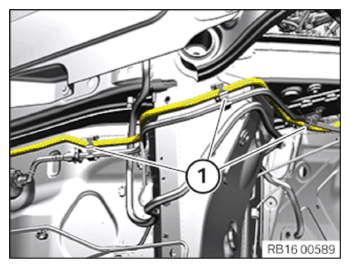

- Unclip the purge air lines from the holders (1) .

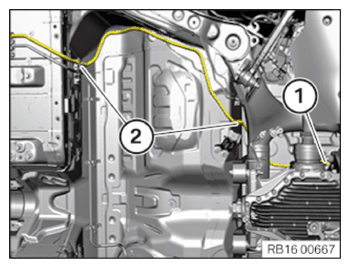

- Unlock and disconnect snap fastener (1) .
- Unclip the purge air lines from the holders (2) .

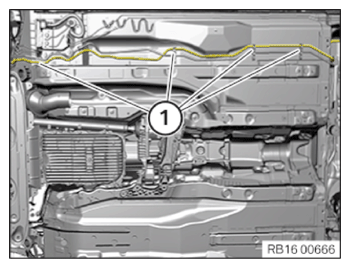

- Unclip the purge air lines from the holders (1) .
- Thread out the purge air line.
