Install carbon canister (US version)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

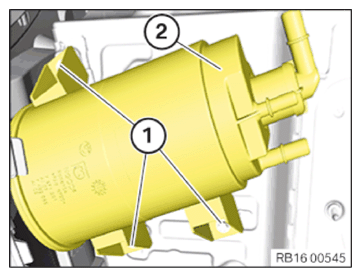

- Position carbon canister (2).
- Fix and tighten nuts and screws (1).
TIGHTENING TORQUES SPECIFICATION
| Carbon canister to body | ||
| Replace screws/nuts. | tightening torque | 8 Nm |

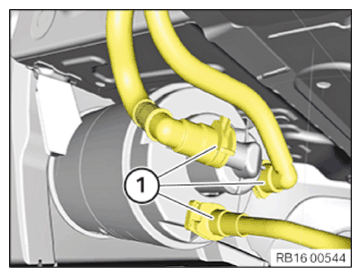

- Fit and lock snap fasteners (1).
Follow-up works
- Refer to INSTALLING THE REAR WHEEL ARCH COVER ON THE RIGHT .
- Refer to MOUNTING THE REAR RIGHT WHEEL .
