Remove fuel filler pipe

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work

Refer to SUCTIONING THE FUEL TANK .
Refer to REMOVING THE REAR RIGHT WHEEL .
Refer to REMOVING RIGHT REAR WHEEL ARCH COVER .
Refer to REMOVING UNDERSHIELD ON THE FUEL TANK ON THE RIGHT .

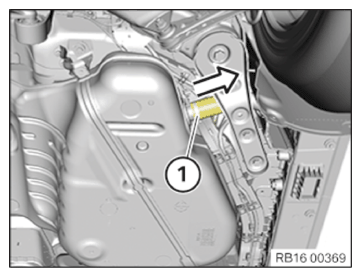

Loosen hose clamp (1).
Detach the fuel filler hose from the fuel tank in the arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

Open sealing cap (1).

Courtesy of BMW OF NORTH AMERICA, INC.

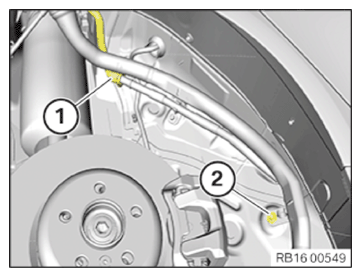

Unlock and detach the snap fastener (1).
Loosen nut (2).

Courtesy of BMW OF NORTH AMERICA, INC.

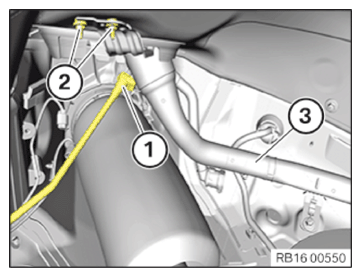

Unlock and detach the snap fastener (1).

Release nuts (2) and remove the fuel filler pipe (3).

Courtesy of BMW OF NORTH AMERICA, INC.
