Installing the fuel filler pipe
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
- Position the fuel filler pipe (3).
- Replace nuts (2).
Parts: Nuts.
- Install the nuts (2) and tighten.
TIGHTENING TORQUES SPECIFICATION
| Fuel filler pipe on upper body | ||
| Nut M6 Replace nut. | tightening torque | 8 Nm |
- Position snap fastener (1) and lock.
- Replace nut (2).
Parts: Nut.
- Fit nut (2) and tighten.
TIGHTENING TORQUES SPECIFICATION
| Fuel filler pipe to body | ||
| Plastic nut Replace plastic nut. | tightening torque | 4 Nm |
- Position snap fastener (1) and lock.

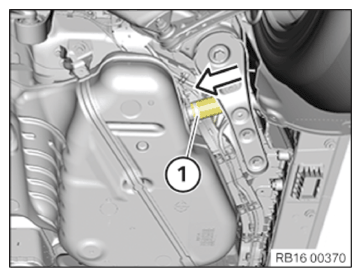

- Mount fuel filler hose on the fuel tank in the arrow direction.
- Replace the hose clamp (1).
Parts: Hose clamp.
- Position hose clamp (1) and tighten.
TIGHTENING TORQUES SPECIFICATION
| Filling hose on fuel tank | ||
| Hose clamp Replace hose clamp | tightening torque | 4 Nm |
- Close sealing cap (1).
Follow-up work
- Refer to INSTALLING UNDERSHIELD ON THE FUEL TANK ON THE RIGHT .
- Refer to INSTALLING THE REAR WHEEL ARCH COVER ON THE RIGHT .
- Refer to MOUNTING THE REAR RIGHT WHEEL .
- Refer to FILLING FUEL TANK .
