Remove the actuator for the exhaust flap

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Hot exhaust system .
Risk of burning!

Any work must exclusively be carried out with an exhaust system that has cooled down.

NOTE: Description is for left component only. Procedure on the right side is identical.

Preliminary work

Refer to ADJUSTING THE EXHAUST FLAP SERVOMOTORS INTO INSTALLATION POSITION .
Refer to REMOVING THE REAR DIFFUSER .

Unlock the plug connection (1).
Disconnect the connector (1) of the exhaust flap (2).

Courtesy of BMW OF NORTH AMERICA, INC.

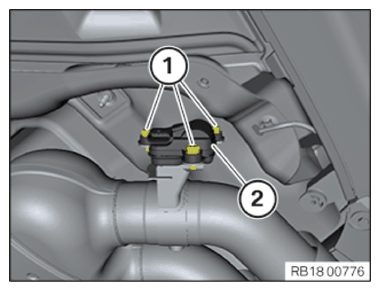

Loosen screws (1).
Remove the controller drive for the exhaust flap (2).

Courtesy of BMW OF NORTH AMERICA, INC.
