Preparing for flushing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Hot fluids.
Risk of scalding!
Risk of scalding!
- Conduct all work in the vehicle wearing appropriate personal protective equipment only.
CAUTION:
Refrigerant circuit under high pressure.
Injury hazard!
Injury hazard!
- Note and follow safety instructions on containers.
- Avoid contact with refrigerant; wear safety goggles and hand protection.
- For additional information see: HANDLING REFRIGERANT and NOTES ON AIR CONDITIONING REPAIR WORK
NOTE:
RISK OF DAMAGE
External damage to air conditioning compressor.
Excessive force applied during removal will result in damage to the air conditioning compressor.
External damage to air conditioning compressor.
Excessive force applied during removal will result in damage to the air conditioning compressor.
- Remove the air conditioning compressor without damaging it and without applying external force.
- Avoid impacts/knocks to plastic belt pulley (caused by tools, contact with base).
- Return faulty air conditioning compressors in their original packaging only.
NOTE:
TECHNICAL INFORMATION
Driving without the strut brace/front-end strut or tension strut is not permitted.
Driving without the strut brace/front-end strut or tension strut is not permitted.
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
NOTE:
TECHNICAL INFORMATION
Before installing the cowl cover, it is imperative to check the correct routing and firm fit of the 48V line.
An incorrectly laid or attached 48V line can be damaged by the wiper kinematics.
Before installing the cowl cover, it is imperative to check the correct routing and firm fit of the 48V line.
An incorrectly laid or attached 48V line can be damaged by the wiper kinematics.
Preliminary work
- Refer to SUCTIONING THE AIR CONDITIONING .
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING THE COVER PANEL OF THE SLAVE DME CONTROL DEVICE .
- Refer to REMOVING HOLDER OF DME CONTROL UNIT FOR CYLINDERS 5 TO 8 .
- Refer to REMOVING COOLANT EXPANSION TANK .
- Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
- Removing the cover of the rear right engine compartment.
- Loosen the lock (1)
- Remove the cover (2).
Covering the vehicle battery
WARNING: Unprotected battery terminals. Risk of short circuits! Risk of fire!- Cover the vehicle battery
NOTE: The following step(s) must be performed if the listed component(s) is/are installed.- Cover the vehicle battery with the special tool 2 452 007 as shown.
- Refer to REMOVING LEFT AND RIGHT WIPER ARM .
- Refer to REMOVING THE COWL COVER .
- Refer to REMOVING TRAILING LINK AT SPRING BOLT .
- Refer to REMOVING THE COWL UPPER PART IN THE CENTER .
- Refer to REMOVING THE COVER IN THE ENGINE COMPARTMENT ON THE LEFT .
- Refer to REMOVING THE COVER IN THE ENGINE COMPARTMENT ON THE RIGHT .
- Refer to RELEASING LEFT FRONT-END STRUT .
- Refer to RELEASING THE RIGHT FRONT-END STRUT .
- Refer to REMOVING FRONT CROSS CONNECTION .
- Refer to REMOVING LEFT INTAKE SILENCER HOUSING .
- Refer to REMOVING RIGHT INTAKE SILENCER HOUSING .
- Refer to REMOVING THE REAR TOP CROSS CONNECTION .
- Refer to REMOVING THE FRONT LEFT WHEEL .
- Refer to REMOVING THE COVER OF THE STEERING ASSEMBLY ON THE RIGHT .
- Refer to REMOVING FAN COWL WITH ELECTRIC MOTOR .
- Refer to REMOVING THE STIFFENING PLATE .
- Refer to DETACHING THE WIRING HARNESS OF THE EPS FROM THE FRONT AXLE SUPPORT .
- Refer to PARTIALLY RELEASING THE ANTI-ROLL BAR LINK ON THE LEFT AND RIGHT FROM THE ANTI-ROLL BAR .
- Refer to RELEASING THE ANTI-ROLL BAR FROM THE FRONT AXLE SUPPORT .
- Refer to REMOVING DRIVE BELT .
- Refer to REMOVING THE BELT TENSIONER .
- Refer to REMOVING AIR CONDITIONING COMPRESSOR .
- Refer to DISCONNECTING THE REFRIGERANT LINE FROM THE EXPANSION VALVE .
- Refer to REMOVING EXPANSION VALVE .
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.

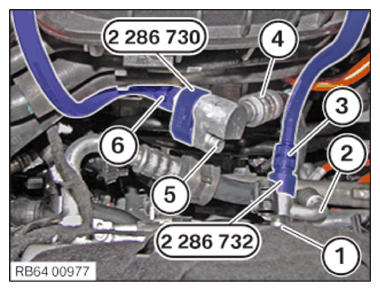

- Guide the high pressure line (2) and low pressure line (4) out and upwards.
- Mount the special tool 2 286 732
on the high pressure line (2)
of the air conditioning compressor and secure with the screw (1)
on the side of vehicle.
- Mount the special tool 2 286 730 on the low pressure line (4) of the air conditioning compressor and secure with the screw (5) on the side of vehicle.
TIGHTENING TORQUES SPECIFICATION
| Refrigerant line on air conditioning compressor | ||
|---|---|---|
| M8 | tightening torque | 19 Nm |
- Preparing the connection to the A/C service station:
- Connect the high pressure line of the A/C service station (3) to the high-pressure connection of the special tool 2 286 732 .
- Connect the low pressure line of the A/C service station (6) to the low pressure connection of the special tool 2 286 730 .

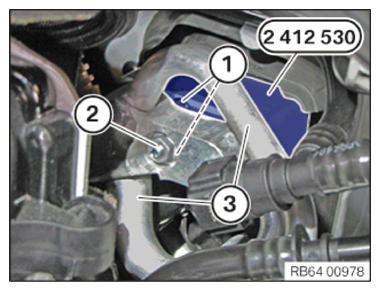

- Mount special tool 2 412 530 as shown and attach it with the onboard screws (1) of the removed expansion valve.
TIGHTENING TORQUES SPECIFICATION
| Expansion valve to heater - A/C | ||
|---|---|---|
| M5 | tightening torque | 5.5 Nm |
- Mount the refrigerant lines (3) on the special tool 2 412 530 and secure them with the nut on the side of vehicle (2) .
TIGHTENING TORQUES SPECIFICATION
| Refrigerant line to expansion valve/connecting piece | ||
|---|---|---|
| M6 | tightening torque | 13 Nm |
