Installing the left ventilation grille

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

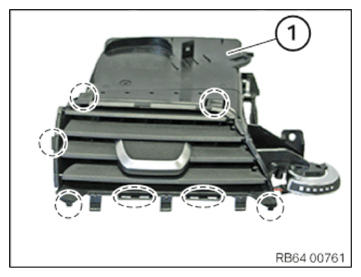

Check the detents for damage in the marked areas on the ventilation grille (1).

Courtesy of BMW OF NORTH AMERICA, INC.

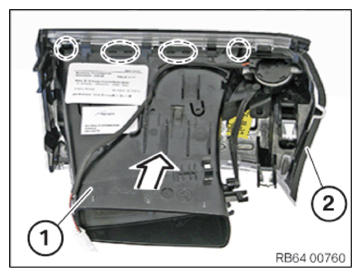

Feed in the ventilation grille (1) in arrow direction in the marked areas of the decorative strip (2).

G14197294

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE DECORATIVE STRIP ON THE DASHBOARD ON THE LEFT .
Refer to INSTALLING THE SIDE PANEL ON LEFT DASHBOARD .
