Removing the evaporator

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Release the holder (1) and remove the foam material (2).
Release the clamps (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock the detents (1) and remove the air distributor (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock and disconnect connector (1).
Remove the wiring harness (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Disconnect the connector (1) and pull out the evaporator temperature sensor (2) from the heating and air-conditioning unit (3).

Courtesy of BMW OF NORTH AMERICA, INC.
Unscrew the screws (1) and remove the bottom cover.

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen the detents (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Release detent (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock the detent (1) and remove the housing (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Remove heat exchanger (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screw (1).
Turn the heating and air-conditioning unit around.

Courtesy of BMW OF NORTH AMERICA, INC.
Detach the water drain hose (1).
Unscrew the screws (2) and remove the cover of the microfilter housing (3).

Courtesy of BMW OF NORTH AMERICA, INC.

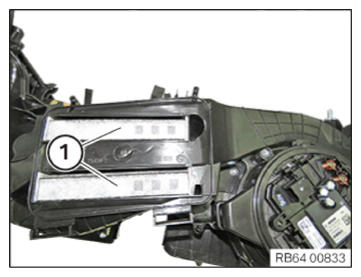

Pull out both microfilters (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Unscrew all screws in the marked area and remove the upper section of the distributor housing (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Remove the evaporator (1) from the distributor housing (2).

Courtesy of BMW OF NORTH AMERICA, INC.
