Remounting the blower for the heating and air-conditioning unit
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

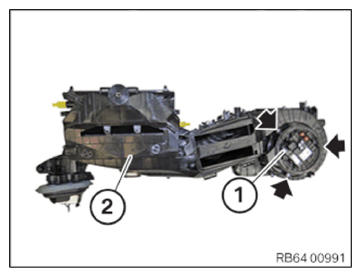

- Remove screws (arrows).
- Remove the blower (1)
from the blower housing (2)
.
- Replace the blower housing (2)
.
Parts:
Blower housing
- Install the blower in the blower housing (2)
.
- Tighten screws (arrows).
TIGHTENING TORQUES SPECIFICATION
| Heater/air conditioner |
| Screw |
tightening torque |
1.2 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
