Installing the evaporator

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

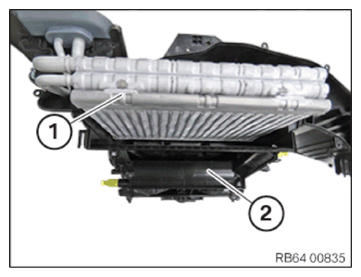

Insert the evaporator (1) in the distributor housing (2) correctly.

Courtesy of BMW OF NORTH AMERICA, INC.

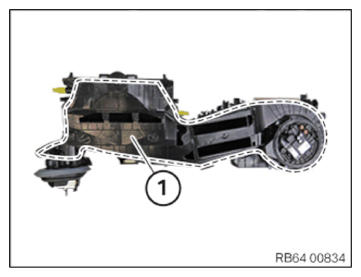

Position distributor housing upper section (1) correctly and tighten all screws in the marked area.

TIGHTENING TORQUES SPECIFICATION

Heater/air conditioner
Screw	tightening torque	1.2 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

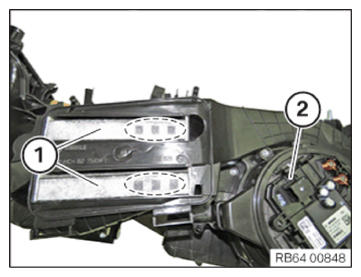

Correctly insert both microfilters (1).
The marks on the microfilters (1) must always point in the direction of the blower (2).

Courtesy of BMW OF NORTH AMERICA, INC.

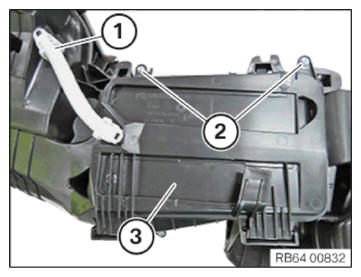

Correctly position the cover of the microfilter housing (3) and tighten screws (2).

TIGHTENING TORQUES SPECIFICATION

Microfilter lid on heating and air-conditioning unit
Screw	tightening torque	2.8 Nm

Connect water drain hose (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Turn the heating and air-conditioning unit around.

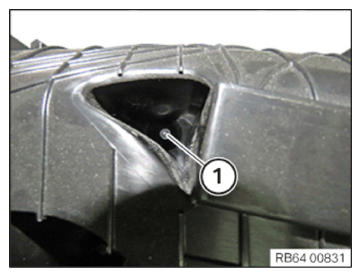

Tighten down screw (1).

TIGHTENING TORQUES SPECIFICATION

Heater/air conditioner
Screw	tightening torque	1.2 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

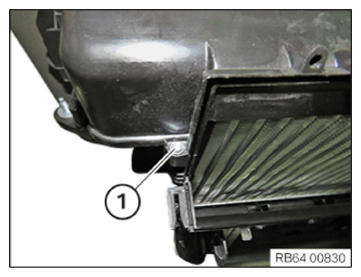

Tighten down screw (1).

TIGHTENING TORQUES SPECIFICATION

Heater/air conditioner
Screw	tightening torque	1.2 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Insert heat exchanger (1) correctly.

Courtesy of BMW OF NORTH AMERICA, INC.

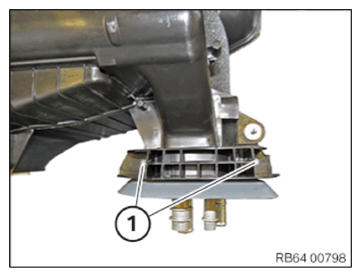

Correctly position the housing (2) and engage it in the detents (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Engage the detent (1) on the housing (2) correctly.

Courtesy of BMW OF NORTH AMERICA, INC.
Lock detent (1) correctly.

Courtesy of BMW OF NORTH AMERICA, INC.
Correctly position the bottom cover and tighten screws (1).

TIGHTENING TORQUES SPECIFICATION

Heater/air conditioner
Screw	tightening torque	1.2 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Properly insert the evaporator temperature sensor (2) into the heating and air-conditioning unit (3) and connect the connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Insert the wiring harness (2) and connect the connectors (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Tighten down screws (1).

TIGHTENING TORQUES SPECIFICATION

Heater/air conditioner
Screw	tightening torque	1.2 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Properly position the air distributor (2) and engage in the detents (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Secure the clamps (arrows).
Correctly position the foam material (2) and secure it with the holder (1).

Courtesy of BMW OF NORTH AMERICA, INC.
