Removing the 12 V power socket in the rear center console trim
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
- Turn the head of the special tool (1) to the left until both marks (arrows) are positioned opposite each other.
- Insert the special tool (1) into the 12 V power socket (3).
- If applicable, turn the special tool (1) towards the left until the recesses (2) of the special tool are engaged with the contacts (4) of the 12 V power socket (3).
- Turn the head of the special tool (1) towards the right until the special tool is locked in the 12 V power socket (3).
- Pull the special tool 0 496 588 (61 0 250)
with the 12 V power socket out of the center console trim.

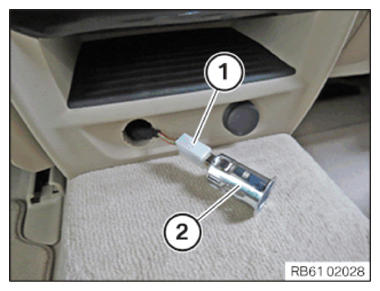

- Disconnect plug connection (1).
- Remove the 12 V power socket (2).
