Installing the rubber window seal for the door window glass, front
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

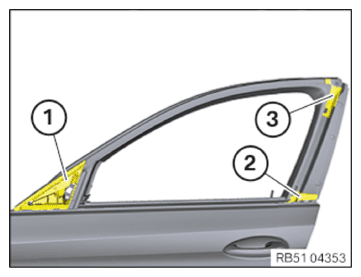

- Check seals (1) through (3) for damage and correct fit, replace where appropriate.
- Feed in rubber window seal (1) together with the top trim strip (2) on the door frame.
- Mount rubber window seal (1) on the trim strip (2).
- Coat rubber window seal (1) with suitable lubricant.
- Retract rubber window seal (1), front and rear in the window guide.
- Make sure the rubber window seal (1) is correctly seated.
Follow-up work
- Refer to INSTALLING THE WINDOW FRAME TRIM OF THE FRONT DOOR .
- Refer to INSTALLING FRONT DOOR WINDOW GLASS .
- Refer to INSTALLING THE WEATHER STRIP ON THE FRONT DOOR .
- Refer to FITTING VEHICLE EXTERIOR MIRROR .
- Refer to INSTALLING THE MIRROR TRIANGLE COVER .
