Checking cowl panel sound insulation
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Check

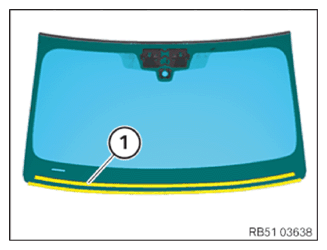

- Check the cowl panel sound insulation (1)
for damage.
Result
» Sound insulation (1) for the cowl panel is damaged.
Measure
- Replace cowl panel sound insulation (1)
.
Parts: sound insulation
Replacing the sound insulation for windshield panel
Removing the sound insulation for the windshield panel
NOTE: TECHNICAL INFORMATION
Notes on component bonding using adhesive tape form the basis for these repair instructions and must be observed without fail.
For additional information see: 51 00... NOTES ON COMPONENT BONDING WITH ADHESIVE TAPE . - Replace cowl panel sound insulation (1)
.
- Remove the sound insulation (1)
for the windshield panel from the windshield.
Attaching the sound insulation for the windshield panel
NOTE: TECHNICAL INFORMATION
Notes on component bonding using adhesive tape form the basis for these repair instructions and must be observed without fail.
For additional information see: 51 00... NOTES ON COMPONENT BONDING WITH ADHESIVE TAPE . - Clean the adhesive area for the sound insulation (1) for the windshield panel.
- Replace the sound insulation (1)
for the windshield panel.
Parts: sound insulation
- Stick the sound insulation (1)
for the windshield panel along the mark (2)
on the windshield.
