Remove the window channel strip on the front door

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RISK OF DAMAGE
Mechanical effects.
Paint damage.

Mask those working areas at risk with yellow plastic adhesive tape.
Remove and install heavy or bulky components with the aid of another person/other persons.

Preliminary work

Refer to REMOVING THE MIRROR TRIANGLE COVER .
Refer to REMOVING THE EXTERIOR MIRROR .

NOTE: RISK OF DAMAGE
Mechanical effects.
Paint damage.

Mask those working areas at risk with yellow plastic adhesive tape.
Remove and install heavy or bulky components with the aid of another person/other persons.

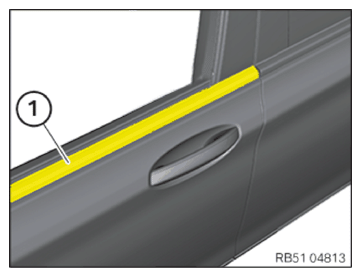

Pull the window channel strip (1) off the door with a suitable plastic wedge beginning from the rear to the top.
The window channel strip (1) will thereby be deformed and must be replaced.

Courtesy of BMW OF NORTH AMERICA, INC.
