Replacing the support for the front bumper cover

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Description is for left component only. Procedure on the right side is identical.

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

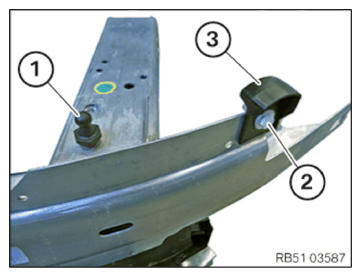

Remove the adjusting element (1) .
Unscrew the screw (2) and remove the holder (3) .
Replace the support for the front bumper cover.
Parts: Support for the front bumper cover
Attach the adjusting element (1) and the holder (3) to the support.
Tighten down screw (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATIONS

Z support to support

8 Nm

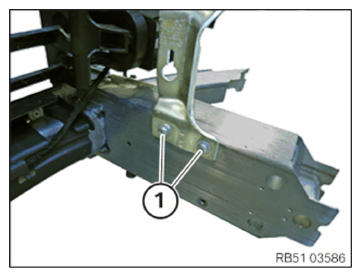

Loosen screws (1).
Mount the holder and deformation element on the support for the front bumper cover.

Tighten the screws (1) on the support.

TIGHTENING TORQUE SPECIFICATIONS

Support on vertical connection
M6x20 screw	Tightening torque	11.8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
