Removing the support for the front bumper cover

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work

Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
Refer to REMOVING THE COVER IN THE ENGINE COMPARTMENT ON THE RIGHT .
Refer to REMOVING THE COVER IN THE ENGINE COMPARTMENT ON THE LEFT .
Refer to REMOVING FRONT ORNAMENTAL GRILLE .
Refer to REMOVING LEFT AND RIGHT BRAKE VENTILATION DUCT .
Refer to REMOVING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER .
Refer to REMOVING THE FRONT RIGHT WHEEL ARCH COVER FRONT SECTION .
Refer to REMOVING FRONT BUMPER COVER .
Refer to REMOVING THE EXTERNAL RADIATOR .
Refer to RELEASING THE AUXILIARY COOLANT PUMP FOR THE HEATER CIRCUIT .
Refer to REMOVING THE FANFARE HORN ON THE LEFT .
Refer to REMOVING THE FANFARE HORN TOWARDS THE RIGHT .
Refer to REMOVING BOTH HEADLIGHTS .
Refer to REMOVING TOPPING AUTOMATIC AIR FLAP CONTROL .
Refer to REMOVING THE SUPPORT FOR THE FRONT BUMPER COVER AT THE BOTTOM .
Refer to REMOVING AIR DUCT AT THE BOTTOM .
Refer to REMOVING THE BRAKE VENTILATION DUCT .

Unlock plug connection (1) and disconnect.
Remove the impact absorber (2).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Description is for left component only.
Procedure on the right side is identical.
Disengage the air inlet (1) at the detents (2) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
Release the screws (1) and remove the cover (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Detach the trim panel (1) on the lever (2) from the guide in a backwards direction and fold it upwards.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Description is for left component only.
Procedure on the right side is identical.

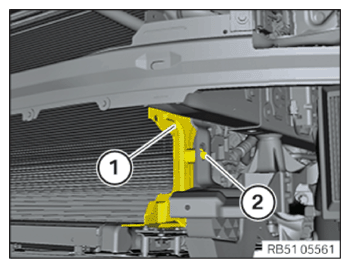

Loosen screw (1).
Loosen expanding rivet (2).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Description is for left component only. Procedure on the right side is identical.
Lift the air duct (1) upwards out of the guide (2).
Thread out air duct (1) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Description is for left component only.
Procedure on the right side is identical.

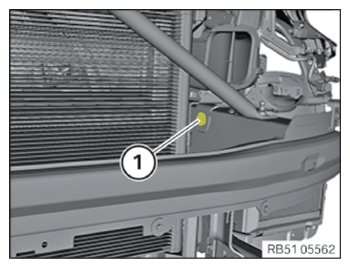

Loosen screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Secure the engine oil cooler (2) from falling.
Loosen screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Disengage the engine oil cooler (2) downwards out of the snap-in lugs (1).
Detach the engine oil cooler (2) and secure it (do not remove).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Description is for left component only.
Procedure on the right side is identical.

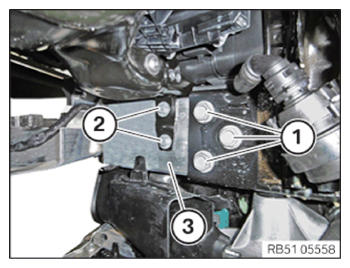

Loosen screws (1).
Loosen screws (2).
Unlock plug connections and disconnect.
Feed out the support for the front bumper cover (3) together with the deformation elements below and remove it.

Courtesy of BMW OF NORTH AMERICA, INC.
