Removing both cylinder heads

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Hot fluids.
Risk of scalding!

Conduct all work in the vehicle wearing appropriate personal protective equipment only.

NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

NOTE: TECHNICAL INFORMATION
Grease the threads of new oxygen sensors thinly and evenly.
For oxygen sensors that are reused, the following should be observed:
Thinly and evenly grease the oxygen sensor on the thread only. Do not clean the part of the oxygen sensor that does not protrude into the exhaust line (sensor ceramics) and do not grease.
For additional information see: 11 00... OVERVIEW OF CONSUMABLES IN APPLICABLE BMW PARTS CATALOGUE .

Preliminary work

Refer to SUCTIONING THE AIR CONDITIONING .
Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
Refer to REMOVING THE COVER PANEL OF THE MASTER DME CONTROL UNIT .
Refer to REMOVING THE COVER PANEL OF THE SLAVE DME CONTROL DEVICE .
Refer to REMOVING THE ACOUSTIC COVER .
Refer to REMOVING THE CONTROL UNIT BRACKET FOR CYLINDERS 1 TO 4 .
Refer to REMOVING IGNITION COIL OF CYLINDER BANK 2 .
Refer to REMOVING RAIL FROM BANK 2 .
Refer to DISCONNECTING PLUG CONNECTIONS OF THE INJECTORS OF CYLINDER BANK 2 .
Refer to REMOVING INJECTORS .
Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
Removing the cover of the rear right engine compartment.

Courtesy of BMW OF NORTH AMERICA, INC.
- Loosen the lock (1)
- Remove the cover (2).
Covering the vehicle battery
WARNING:
Unprotected battery terminals. Risk of short circuits! Risk of fire!
- Cover the vehicle battery
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The following step(s) must be performed if the listed component(s) is/are installed.
- Cover the vehicle battery with the special tool 2 452 007 as shown.
Refer to REMOVING LEFT AND RIGHT WIPER ARM .
Refer to REMOVING THE COWL COVER .
Refer to REMOVING TRAILING LINK AT SPRING BOLT .
Refer to REMOVING THE COWL UPPER PART IN THE CENTER .
Refer to DISCONNECTING THE REFRIGERANT LINE FROM THE EXPANSION VALVE .
Refer to REMOVING THE REFRIGERANT LINE BETWEEN THE AIR CONDITIONING CONDENSER AND THE EVAPORATOR .
Refer to REMOVING THE HOLDER WITH THE VEHICLE WIRING HARNESS FOR THE SENSOR SYSTEM OF CYLINDER BANK 1 .
Refer to REMOVING THE LAMBDA OXYGEN SENSOR FOR THE CYLINDERS 1 TO 4 .
Refer to REMOVING LAMBDA OXYGEN SENSOR FOR THE CYLINDERS 5 TO 8 .
Refer to REMOVING HOLDER OF DME CONTROL UNIT FOR CYLINDERS 5 TO 8 .
Refer to REMOVING LEFT HIGH PRESSURE PUMP .
Refer to REMOVING COOLANT EXPANSION TANK .
Refer to REMOVING EXPANSION TANKS FOR THE CHARGE AIR COOLERS .
Refer to LIFTING THE HEAT SHIELD AT THE SIDE .
Refer to REMOVING THE OXYGEN SENSOR MONITOR OF CYLINDER BANK 2 .
Removing conduit from bank 1.

Courtesy of BMW OF NORTH AMERICA, INC.
- Loosen screws (1).
- Slide conduit (2) downwards.
Removing the tank ventilation line of cylinder bank 1 partially.

Courtesy of BMW OF NORTH AMERICA, INC.
- Press the tank vent line (2) on the catch (1) and unlock.
- Disconnect the tank vent line (2).
- Fold the tank vent line (2) to the side
Refer to REMOVING ENGINE VENTILATION LINE OF CYLINDER BANK 2 .
Refer to REMOVING THE WIRING HARNESS FROM THE CYLINDER BANK 2 .
Refer to REMOVING UPPER HEAT SHIELD .
Refer to REMOVING THE COVER IN THE ENGINE COMPARTMENT ON THE LEFT .
Refer to REMOVING THE COVER IN THE ENGINE COMPARTMENT ON THE RIGHT .
Refer to RELEASING LEFT FRONT-END STRUT .
Refer to RELEASING THE RIGHT FRONT-END STRUT .
Refer to REMOVING FRONT CROSS CONNECTION .
Refer to REMOVING LEFT INTAKE SILENCER HOUSING .
Refer to REMOVING THE CLEAN AIR PIPE OF CYLINDER BANK 2 .
Refer to REMOVING RIGHT INTAKE SILENCER HOUSING .
Refer to REMOVING THE CLEAN AIR PIPE OF CYLINDER BANK 1 .
Refer to REMOVING THE REAR TOP CROSS CONNECTION .
Refer to REMOVING FAN COWL WITH ELECTRIC MOTOR .
Refer to REMOVING DRIVE BELT .
Refer to REMOVING THE ALTERNATOR .
Refer to REMOVING THE BELT TENSIONER .
Refer to REMOVING THE COOLANT PUMP .
Refer to REMOVING AIR CONDITIONING COMPRESSOR .
Refer to REMOVING THE STIFFENING PLATE .
Refer to REMOVING THE WHEEL ARCH COVER ON THE FRONT LEFT AND BOTTOM RIGHT .
Refer to DRAINING THE COOLANT FROM THE COOLANT PUMPS .
Refer to REMOVING OIL FILLER NECK .
Refer to REMOVING RIGHT CHARGE AIR COOLER .
Refer to REMOVING LEFT CHARGE AIR COOLER .
Refer to REMOVING THE INTAKE PIPE .
Refer to REMOVING LEFT THROTTLE VALVE ASSEMBLY .
Refer to REMOVING THE HOLDER WITH THE VEHICLE WIRING HARNESS FOR THE SENSOR SYSTEM OF CYLINDER BANK 1 .
Refer to REMOVING THE HOLDER WITH THE VEHICLE WIRING HARNESS FOR THE SENSOR SYSTEM OF CYLINDER BANK 2 .
Refer to REMOVING UPPER CATALYTIC CONVERTER NEAR ENGINE FROM CYLINDER BANK 1 .
Refer to REMOVING THE CATALYTIC CONVERTER NEAR THE ENGINE AT TOPPING OF CYLINDER BANK 2 .
Refer to REMOVING THE CLEAN AIR PIPE OF CYLINDER BANK 2 .
Refer to REMOVING THE CLEAN AIR PIPE OF CYLINDER BANK 1 .
Refer to REMOVING LEFT MOUNT .
Refer to REMOVING RIGHT MOUNT .
Refer to REMOVING THE LEFT AND RIGHT EXHAUST TURBOCHARGER .
Refer to REMOVING FRONT HEAT SHIELD .
Refer to REMOVING HEAT SHIELD AT BOTTOM .
Refer to REMOVING FUEL DELIVERY LINE .
Refer to REMOVING LEFT CYLINDER HEAD COVER .
Refer to REMOVING THE SEALING CAP ON THE CYLINDER HEAD OF THE CYLINDER BANK 2 .
Refer to REMOVING THE BELT PULLEY ON THE TORSIONAL VIBRATION DAMPER .
Refer to MOVING THE CRANKSHAFT INTO THE INSTALLATION POSITION OF CYLINDER BANK 1 .
Refer to CHECKING THE VANOS ADJUSTER OF CYLINDER BANK 2 .
Refer to RELAXING CHAIN TENSIONER ON BANK 2 FOR CHECKING OR SETTING TIMING .
Refer to REMOVING HYDRAULIC CHAIN TENSIONER OF CYLINDER BANK 2 .
Refer to PRELOADING THE TIMING CHAIN OF CYLINDER BANK 2 .
Refer to SECURING THE ENGINE IN INSTALLATION POSITION AT CYLINDER 1 .
Refer to INSTALLING THE SPECIAL TOOL TO SECURING THE CAMSHAFTS OF CYLINDER BANK 2 .
Refer to REMOVING BOTH LEFT VANOS ADJUSTERS .
Refer to REMOVING SPECIAL TOOL FOR FIXING CAMSHAFTS IN POSITION ON BANK 2 .

Remove left cylinder head

Prepare special tool (8.5 mm diameter)

Prepare the special tool 0 494 116 (11 8 352) from the set of special tools 0 493 997 (11 8 350) in a vice.
Mark special tool 0 494 116 (11 8 352) in area A = 50 mm.
Set a punch in the center of the marked area.
Drill a hole with a diameter of 8.5 mm.

Courtesy of BMW OF NORTH AMERICA, INC.

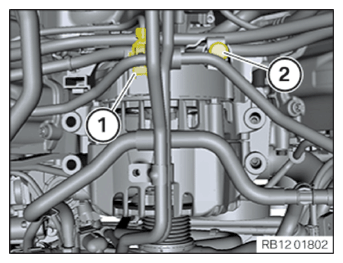

Loosen hose clamp (1).
Pull off coolant hose.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: To provide a better overview: Schematic diagram with partially hidden components.
Release the wiring harness mountings (1) below the intake system.

Courtesy of BMW OF NORTH AMERICA, INC.

Remove both exhaust manifolds

Loosen screws (1).
Remove exhaust manifold (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screws (1).
Remove exhaust manifold (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Remove gaskets (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Release the cylinder head bolt at the timing case cover

Release the screws (1) the timing case cover.

Courtesy of BMW OF NORTH AMERICA, INC.

Release the screw of the slide rail at the cylinder head of cylinder bank 2

Release the screw of the slide rail on the cylinder head of cylinder bank (1).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE
Improper screw length can cause component damage.
The use of screws of improper length can lead to component damage.

Note the correct screw length.
Install screws that correspond to the original length.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten the special tool 0 494 116 (11 8 352) from the set of special tools 0 493 997 (11 8 350) on the cylinder head with standard M8 screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Special tool to cylinder head bank 2
M8 screw	tightening torque	25 Nm

Release cylinder head, left

Releasing the left cylinder head

Fig 1: Left Cylinder Head Screws Loosening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (1) to (10).
To remove the cylinder head bolt (1) on the fifth cylinder, turn camshaft (2) with standard opened wrench (3) on the hexagon head.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
The work must be performed with vehicle care to prevent component damage.

Attach the special tool 0 490 567 (11 0 020) on the retaining tab (1) and on the special tool 0 494 116 (11 8 352) from the set of special tools 0 493 997 (11 8 350) .
NOTE: TECHNICAL INFORMATION
The work must be performed with vehicle care to prevent component damage.

Courtesy of BMW OF NORTH AMERICA, INC.
Observe free movement of the tensioning rails and slide rails.
Risk of breakage.
Carefully lift the cylinder head using a workshop crane.
Turn the cylinder head to the V-area and feed out.
Remove cylinder head gasket (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Remove vacuum pump

Disengage the cable (1) from the clamps (2) and set it aside.

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock and disconnect the vacuum line at the closure (1).
Set the vacuum line aside.

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screws (1).
Loosen screws (2).
Feed out the vacuum pump (3) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Remove right cylinder head cover

Unlock and disconnect the plug connection (1) on the pressure sensor for intake air pressure.
Unlock and disconnect the plug connection (2) on the Valvetronic servomotor.

Release the wiring harness mounting (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connection (1) and disconnect.

Remove the cover of the positive battery cable (2) in an upwards direction.

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen nut (1).
Put the positive battery cable to one side.

Courtesy of BMW OF NORTH AMERICA, INC.

Removing both VANOS solenoid actuators, exhaust of cylinder bank 1

Unlock and disconnect plug connections (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Turn VANOS solenoid actuator (1) about 50° counter-clockwise with the special tool 2 360 895 (2).

Remove VANOS solenoid actuator (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Turn VANOS solenoid actuator (1) about 50° counter-clockwise with the special tool 2 360 895 (2).
Remove VANOS solenoid actuator (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Removing right mount

Loosen screws (1).
Remove the right mount (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Determine screw type and select the matching socket wrench:

Screw type	Matching socket wrench
Hexagon screw (3)	Standard socket wrench (1)
Multi-tooth screw (4)	Multi-tooth socket wrench (2)

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screw (1).

Place oil feed line to the side.

Courtesy of BMW OF NORTH AMERICA, INC.

Release the starter cable (2) from the clamps (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Releasing cylinder head cover of cylinders 1 to 4

Cylinder head cover: Cylinders 1 to 4

Fig 2: Right Cylinder Head Cover Bolts Loosening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

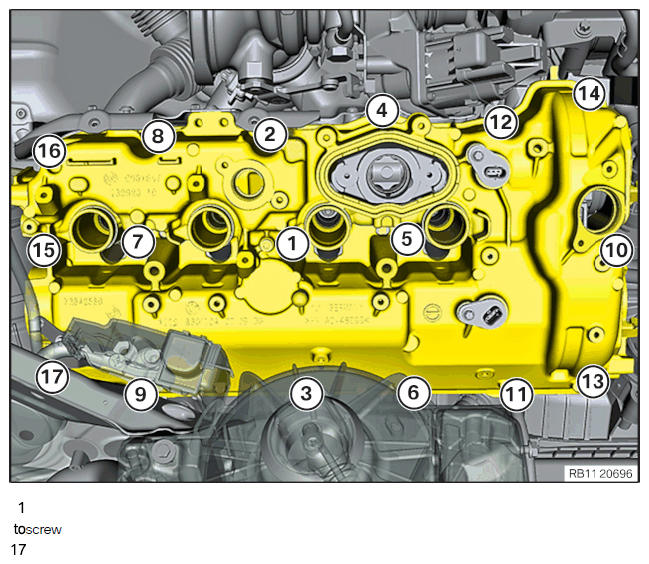

Unscrew bolts (1) to (17).
Feed out and remove the cylinder head cover in an upward direction.

Fig 3: Right Cylinder Head Cover Bolts Loosening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Remove the electric coolant pump with the holder

Loosen screws (1).
Place aside the electric coolant pump with the holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Remove the sealing cap on the cylinder head of the cylinder bank 1

Loosen screws (1).
Remove the sealing cap (2) on the cylinder head.

Courtesy of BMW OF NORTH AMERICA, INC.

Checking the VANOS adjuster of cylinder bank 1

Check

Check the lock of intake adjuster and exhaust camshaft adjuster.
Position the open-end wrench (1) on the hexagon of the camshafts.
Move the open-end wrench back and forth a little in the arrow direction.
The camshafts must be connected with the VANOS adjusters (2) with frictional connections.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Camshafts are connected to the VANOS adjusters (2) with frictional connections.

Measure

Continue the repair with the next step.

Result

» If there is no frictional connection, the relevant adjuster must be replaced.

Measure

Replace the affected VANOS adjuster.

Measure

Check timing again.

Relieving the chain tensioner at cylinder bank 1 for checking or setting the valve timings

NOTE: RISK OF DAMAGE
Damage to timing chain or timing chain drive.
Turning the engine without chain tensioner or special tool can result in damage to the timing chain and timing chain drive.

Always turn the engine with the chain tensioner or the special tool.

Make sure that the chain drive is loaded at the same time on the central bolt of the engine and on the VANOS central valve on the exhaust.
The movement of the chain tensioner piston must be observed in this process.

To do this, the following steps must be carried out at the same time:

Keep the VANOS central valve on the exhaust under tension in clockwise direction with a support person.

The VANOS central valve on the exhaust must not be twisted.

Courtesy of BMW OF NORTH AMERICA, INC.

Turn engine counter clockwise at central bolt (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Slackening the hydraulic chain tensioner of cylinder bank 1

NOTE: RISK OF DAMAGE
Damage to timing chain or timing chain drive.
Turning the engine without chain tensioner or special tool can result in damage to the timing chain and timing chain drive.

Always turn the engine with the chain tensioner or the special tool.

Courtesy of BMW OF NORTH AMERICA, INC.

Position the special tool 0 491 012 (11 4 120) (3) in the bore and fasten the chain tensioner piston.

Make sure that the chain drive is relieved at the same time on the central bolt of the engine and on the VANOS central valve on the exhaust. To do this, carry out the following steps at the same time:

Relieve the chain drive clockwise at the central bolt.

Courtesy of BMW OF NORTH AMERICA, INC.

Relieve the chain drive counterclockwise at the VANOS central valve on the exhaust.

Courtesy of BMW OF NORTH AMERICA, INC.

Removing hydraulic chain tensioner of cylinder bank 1

NOTE: RISK OF DAMAGE
Damage to timing chain or timing chain drive.
Turning the engine without chain tensioner or special tool can result in damage to the timing chain and timing chain drive.

Always turn the engine with the chain tensioner or the special tool.

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (1).
Feed out and remove hydraulic chain tensioner (2).

Preloading the timing chain of cylinder bank 1

NOTE: RISK OF DAMAGE
Damage to timing chain or timing chain drive.
Turning the engine without chain tensioner or special tool can result in damage to the timing chain and timing chain drive.

Always turn the engine with the chain tensioner or the special tool.

Hand-tighten the bolts (1).
Pre-tension timing chain on special tool 2 249 162 at hexagon screw (2) with special tool 0 496 778 (00 9 460) to 0.6 Nm.

TIGHTENING TORQUE SPECIFICATIONS

Preload timing chain
	tightening torque	0.6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Secure the engine in installation position at cylinder 1

Position special tool 0 496 366 (11 8 570) (3) on the vibration absorber.
Position special tool 0 493 882 (11 9 190) (1) in special tool 0 496 366 (11 8 570) .
NOTE: Do not slide the special tool 0 493 882 (11 9 190) (1) too far in; otherwise, it will collide with other components when the crankshaft is turning.
Position reversible ratchet (1).
Rotate engine on the central bolt until the special tool lines up with the engine block marks.

Courtesy of BMW OF NORTH AMERICA, INC.
Attach the special tool 0 496 366 (11 8 570) (3) to the vibration absorber with a screw from the belt pulley (2) and hand-tighten.
With the crankshaft in the installation position, use the special tool 0 493 882 (11 9 190) (1) to insert it onto the marks and fasten.
NOTE: Description is for right component only.
The procedure on the left side is identical.

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

Courtesy of BMW OF NORTH AMERICA, INC.
Ensure that the polished surfaces of the camshafts (1) point upward.
Ensure that the rounded surfaces (1) are pointing down to the cylinder head.
Check timing again and assess.

Check

Check the camshaft positions of cylinder bank 1.
The cams (1) should be in the position shown.

The increment wheels (2) must be flush with the exhaust camshaft bearing cap and the intake camshaft bearing cap.

The ground surfaces of the camshaft must face up.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Camshaft position is correct.

Measure

Continue the repair with the next step.

Result

» Camshaft position is not correct.

Measure

Disassemble special tools 0 496 366 (11 8 570) and 0 493 882 (11 9 190) and remove.

Measure

Turn engine at the central bolt of the crankshaft by 360° until the installation position (MP) of the vibration absorber is positioned flush with the marks of the engine block.

Measure

Re-secure the engine in TDC setting with special tools 0 496 366 (11 8 570) and 0 493 882 (11 9 190) .

Installing the special tool to secure the camshafts of cylinder bank 1

NOTE: TECHNICAL INFORMATION
If the check finds that the valve timings are incorrect, they must be adjusted.
For additional information, see: ADJUSTING THE VALVE TIMING OF CYLINDER BANK 1 .

Check

Position special tool 2 249 117 (1) on the camshafts of cylinder bank 1.
Check if the camshafts can be fastened with the special tool 2 249 117 (1).
Check if the special tool 2 249 117 can be brought in contact with the cylinder head using the two screws of the cylinder head cover (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The camshafts can be fastened.

Measure

Timings are OK.
Loosen screws (2).

Remove the special tool 2 249 117 (1).

Continue the repair in the next step.

Result

» The camshafts cannot be fastened.

Measure

Adjust the timings of cylinder bank 1.

Removing both right VANOS adjusters

Removing the slide rail of cylinder bank 1 (removal/installation/replacement of the VANOS adjuster)

Loosen screw (1).
Loosen screw (2).
Remove the slide rail (3) of the cylinder bank 1.

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen the VANOS central valve (1).
Remove the VANOS central valves (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Feed out and remove the VANOS adjusters (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Removing special tool for fixing camshafts on bank 1

Loosen screws (2).
Remove the special tool 2 249 117 (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Remove right cylinder head

Prepare special tool (8.5 mm diameter)

Prepare the special tool 0 494 116 (11 8 352) from the set of special tools 0 493 997 (11 8 350) in a vice.
Mark special tool 0 494 116 (11 8 352) in area A = 50 mm.
Set a punch in the center of the marked area.
Drill a hole with a diameter of 8.5 mm.

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen hose clamp (1).
Remove coolant hose.

Courtesy of BMW OF NORTH AMERICA, INC.
Release the wiring harness mountings (1) below the intake system.

Courtesy of BMW OF NORTH AMERICA, INC.

Remove both exhaust manifolds

Loosen screws (1).
Remove exhaust manifold (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screws (1).
Remove exhaust manifold (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Remove gaskets (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Twist the intake camshaft by 180°

Turn the intake camshaft (1) with an open-end spanner (2) by 180° in the direction of arrow.
This consequently guarantees accessibility to the cylinder head bolts.

Courtesy of BMW OF NORTH AMERICA, INC.

Release the cylinder head bolt at the timing case cover

Release the screws (1) the timing case cover.

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew the screw of the slide rail on the cylinder head of cylinder bank 1

Release screw (1) of the slide rail on the cylinder head of the cylinder bank.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE
Damage of the engine and installed parts.
Non-compliance with the instructions for mounting and disassembly may lead to damage to the engine and installed parts.

Comply with the regulations for the installation and disassembly.
Perform work with vehicle care.

Courtesy of BMW OF NORTH AMERICA, INC.

Position the special tool 0 494 116 (11 8 352) (4) from the set of special tools 0 493 997 (11 8 350) in such a way that the special tool 0 494 116 (11 8 352) (4) is located on the cylinder head in the area (3) of centering sleeve on the drilled hole.
Use standard nuts M8 (2) as distance element to protect the blind holes in the cylinder head.
Use standard nuts M8 (2) as distance element to protect the centering sleeve in the cylinder head from deformation.
Hand-tighten the screw (1) of the cylinder head cover.

Loosen right cylinder head

Releasing the right cylinder head

Fig 4: Right Cylinder Head Screws Loosening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (1) to (10).

NOTE: TECHNICAL INFORMATION
The work must be performed with vehicle care to prevent component damage.

Attach the special tool 0 490 567 (11 0 020) on the retaining tab (1) and on the special tool 0 494 116 (11 8 352) from the special tool kit 0 493 997 (11 8 350) .
NOTE: TECHNICAL INFORMATION
The work must be performed with vehicle care to prevent component damage.

Courtesy of BMW OF NORTH AMERICA, INC.
Make sure the tensioning rails and slide rails move freely.
Risk of breakage.
Carefully lift the cylinder head using a workshop crane.
Turn the cylinder head to the V-area and feed out.
Remove cylinder head gasket (1).

Courtesy of BMW OF NORTH AMERICA, INC.
