Remove brake pad wear sensor to the front
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to REMOVING THE FRONT LEFT WHEEL .
NOTE:
TECHNICAL INFORMATION
The brake pad wear sensor must be replaced immediately once it has been removed because the brake pad wear sensor loses its retention capacity in its brake pad.
If a brake pad wear sensor that has already been ground has to be replaced even though the minimum brake pad thickness has not yet been reached, you must observe the following:
The new sliding contact must be filed down with a file to the same length as the sanded sliding contact.
The brake pad wear sensor must be replaced immediately once it has been removed because the brake pad wear sensor loses its retention capacity in its brake pad.
If a brake pad wear sensor that has already been ground has to be replaced even though the minimum brake pad thickness has not yet been reached, you must observe the following:
The new sliding contact must be filed down with a file to the same length as the sanded sliding contact.

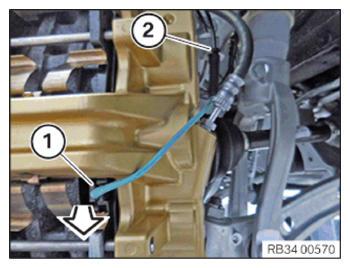

- Remove the brake pad wear sensor (1) from the brake pad in the direction of the arrow.
- Detach the cable of the brake pad wear sensor (1) from the holder (2).
- Detach the brake pad wear sensor from the holders (1).
- Open sealing cap (2) and unlock and disconnect the plug connection.
