Remove front brake hose
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: 00... RAISING THE VEHICLE USING A VEHICLE LIFT
NOTE:
TECHNICAL INFORMATION
Use only BMW-approved brake fluids.
For additional information see: "Fluid Capacities" tab for the selected vehicle.
Use only BMW-approved brake fluids.
For additional information see: "Fluid Capacities" tab for the selected vehicle.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to INSTALLING BRAKE PEDAL TENSIONER .
- Refer to REMOVING FRONT LEFT OR RIGHT WHEEL .

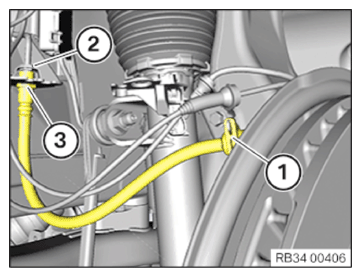

- Detach the brake hose (1) from the brake caliper and provide counter support at the knurling (2) as needed.
- Detach the brake hose from the holder (3).
- Detach the brake hose from the holder (1).
- Unscrew the union screw (2) and use the square shaft (3) for counter support as needed.
