Install the seat cover with cushion (M CFRP bucket seat)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.

Protect working area.
Handle tools and components carefully.

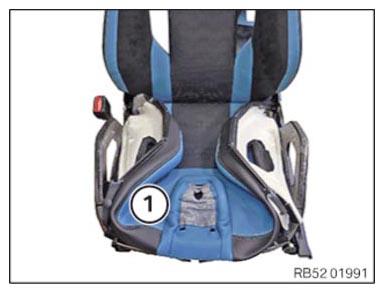

Position the seat cover (1) with cushion as shown.

Courtesy of BMW OF NORTH AMERICA, INC.

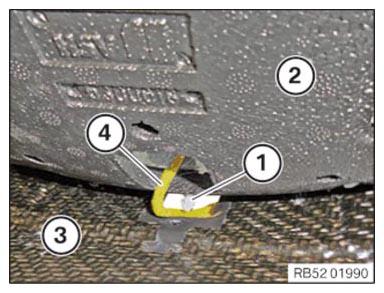

Feed in the cable (4) for seat heating.
Clip the clip (1) from the seat cover (2) into the seat mechanism (3)

Courtesy of BMW OF NORTH AMERICA, INC.

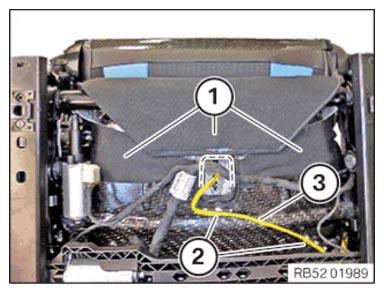

Connect and lock the associated connector of the cable (3) for the seat heating.
Clip in the cable clip (2).
Clip in the seat cover (1) in the marked area.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The operations shown only for one side must be carried out on both sides.

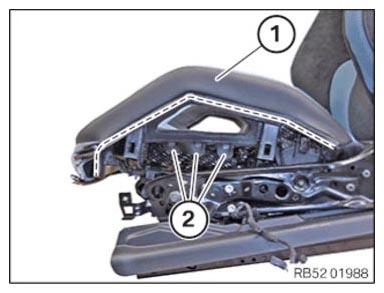

Clip in the seat cover (1) in the marked area.
Feed in the seat cover (1) in the retaining tabs (2).

Courtesy of BMW OF NORTH AMERICA, INC.

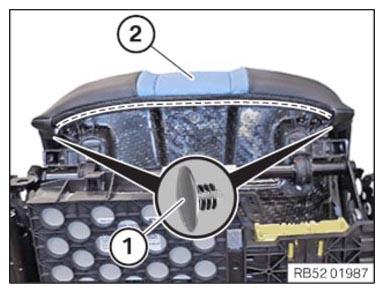

Clip in the seat cover (2) in the marked area.
Clip in clips (1).

Courtesy of BMW OF NORTH AMERICA, INC.
