Replacing the O-ring on the bearing bracket

Preliminary work

• Refer to REMOVING THE COVER IN THE ENGINE COMPARTMENT AT THE RIGHT REAR .
• Refer to REMOVING THE RIGHT SIDE HOOD SEAL .
• Refer to PARTIALLY RELEASING THE FRONT RIGHT SPRING STRUT .
• Refer to REMOVING THE FRONT LEFT AND RIGHT WHEELS .
• Refer to RELEASING THE OUTPUT SHAFT, RIGHT, FROM THE WHEEL BEARING .
• Refer to RELEASING THE TOP RIGHT WISHBONE FROM THE SWIVEL BEARING .
• Refer to SECURING THE SWIVEL BEARING .
• Refer to REMOVING THE RIGHT SPRING STRUT HOLDER .
• Refer to REMOVING THE COVER OF THE STEERING ASSEMBLY ON THE LEFT AND RIGHT .
• Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
• Refer to REMOVING THE STIFFENING PLATE .
• Refer to REMOVING RIGHT OUTPUT SHAFT .
• Refer to REMOVING BEARING BRACKET .

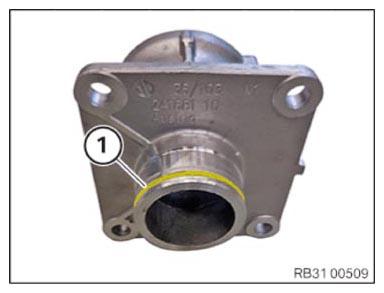

• Remove the O-Ring (1)  .
• Replace O-ring.

Parts:  O-ring

• Position new O-ring (1)  in the groove on the bearing bracket.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING BEARING BRACKET .
• Refer to REPLACING THE RADIAL SHAFT SEAL OF THE BEARING BRACKET .
• Refer to FOR REUSING: CHECKING THE GEARING OF THE OUTPUT SHAFT AND REPLACING THE CIRCLIP .
• Refer to INSTALLING RIGHT OUTPUT SHAFT .
• Refer to CHECKING/ADDING FRONT AXLE TRANSMISSION OIL .
• Refer to INSTALLING THE STIFFENING PLATE .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE RIGHT SPRING STRUT HOLDER .
• Refer to SECURING UPPER WISHBONE, RIGHT, AT THE SWIVEL BEARING .
• Refer to REMOVING THE TOP SWIVEL BEARING ATTACHMENT .
• Refer to FASTENING THE RIGHT OUTPUT SHAFT ON THE WHEEL BEARING .
• Refer to INSTALLING THE FRONT LEFT AND RIGHT WHEELS .
• Refer to FASTENING THE FRONT RIGHT SPRING STRUT .
• Refer to INSTALLING THE HOOD SEAL ON THE RIGHT .
• Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT AT THE RIGHT REAR .
