If the anti-roll bar is replaced: Remounting anti-roll bar bracket
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

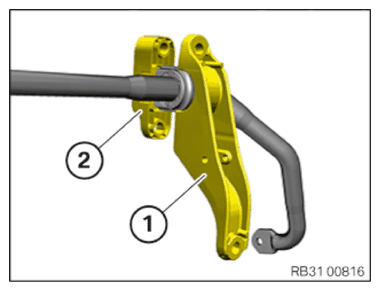

- Remove the retainer (1) and the upper section (2) of the anti-roll bar bracket.
- Check the retainer (1) and the upper section (2) of the anti-roll bar bracket for damage, and replace if applicable.
- Mount the retainer (1) and the upper section (2) of the anti-roll bar bracket on the new anti-roll bar.
