Installing the wheel bearing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

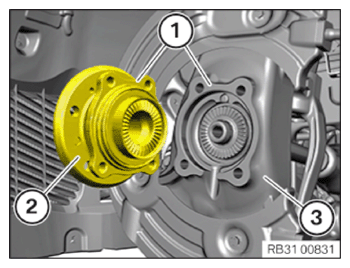

- Keep contact surfaces (1) of swivel bearing (2) and wheel bearing (3) clean and free from oil and grease.
- Position wheel bearing (2) on the swivel bearing (3).

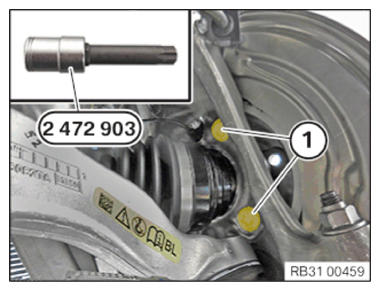

- Turn swivel bearing to the left.
- Replace screws (1).
Parts: Screws
- Screw in screws (1).
Do not tighten the screws (1) yet!

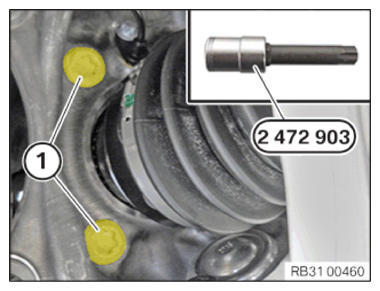

- Turn swivel bearing to the right.
- Replace screws (1).
Parts: Screws
- Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Wheel bearing to swivel bearing | ||
| M12 Replace spherical collar screws. Tighten the spherical-collar screws in crosswise sequence . The tightening sequence must strictly be followed and carried out on all spherical-collar screws at the same time! |
Tightening torque | 20 Nm |
| Initial torque | 140 Nm | |
| Unscrew all bolts . | max. 45° | |
| Tightening torque | 120 Nm | |
| Angle of rotation | 90° | |
- Turn swivel bearing to the left.
- Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Wheel bearing to swivel bearing | ||
| M12 Replace spherical collar screws. Tighten the spherical-collar screws in crosswise sequence . The tightening sequence must strictly be followed and carried out on all spherical-collar screws at the same time! |
Tightening torque | 20 Nm |
| Initial torque | 140 Nm | |
| Unscrew all bolts . | max. 45° | |
| Tightening torque | 120 Nm | |
| Angle of rotation | 90° | |
Follow-up work
- Refer to INSTALLING FRONT BRAKE DISC .
- Refer to SECURING THE BRAKE CALIPER .
- Refer to FASTENING THE OUTPUT SHAFT ON THE WHEEL BEARING .
- Refer to INSTALLING FRONT LEFT OR RIGHT WHEEL .
