Remove swivel bearing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: TECHNICAL INFORMATION
Perform wheel alignment after installation.

NOTE: Description is for left component only. Procedure on the right side is identical.

Preliminary work

Refer to REMOVING FRONT LEFT OR RIGHT WHEEL .
Refer to LOOSENING THE OUTPUT SHAFT FROM THE WHEEL BEARING .
Refer to RELEASING TRACK ROD END FROM SWIVEL BEARING .
Refer to RELEASING THE SPRING STRUT HOLDER FROM THE WISHBONE .
Refer to REMOVING THE FRONT VERTICAL ACCELERATION SENSOR .
Refer to RELEASING THE FRONT WHEEL SPEED SENSOR .
Refer to RELEASING THE BRAKE CALIPER .
Refer to REMOVING FRONT BRAKE DISC .
Refer to REMOVING THE WHEEL BEARING .
Refer to REMOVING THE FRONT BRAKE GUARD PLATE .
Refer to REMOVING HOLDER FROM SWIVEL BEARING .

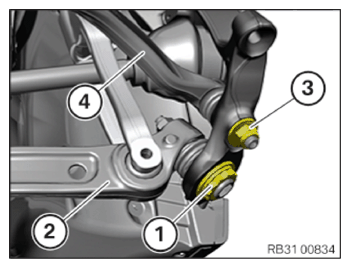

Unfasten nut (1).
NOTE: Hold the hexagon socket.
Releasing the bottom wishbone (2) from the swivel bearing.
Loosen nut (3).
NOTE: Counter-hold at the Torx socket.
Release tension strut (4) from swivel bearing.

Courtesy of BMW OF NORTH AMERICA, INC.

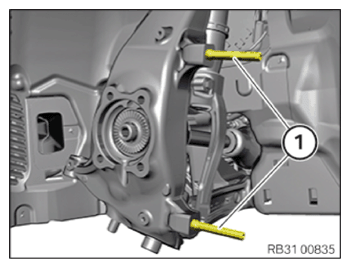

Release and remove the stud bolt (1).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Secure component against falling.

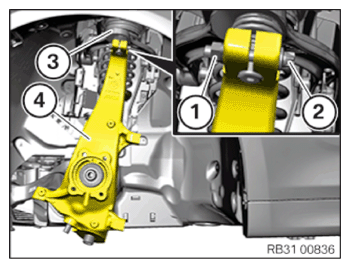

Unfasten nut (1).
Remove the screw (2).
Release the top wishbone (3) from the swivel bearing (4).
Remove the swivel bearing (4).

Courtesy of BMW OF NORTH AMERICA, INC.
