Remove the front sill trim
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.

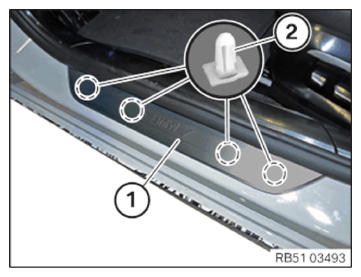

- Lever the front sill trim (1) out of the clips (2) with the special tool 0 496 569 (00 9 325) to the top.
- Remove the front sill trim (1).
