Replacing the trim panel for pedal assembly

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work

Refer to REMOVING THE TRIM PANEL FOR PEDAL ASSEMBLY .

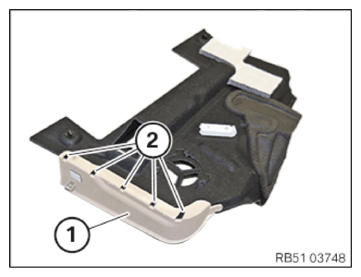

Loosen the trim (1) from the detents (2) and remove it.
Replace the trim panel for pedal assembly.
Parts: Trim panel for pedal assembly
Remount the trim (1) on the trim panel for pedal assembly.

Courtesy of BMW OF NORTH AMERICA, INC.
Lever out the footwell light (1) at the marked spot (arrow).
Clip the footwell light (1) into the trim panel for pedal assembly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE TRIM PANEL FOR THE PEDAL ASSEMBLY .
