Remove the armrest at the door trim panel

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work

Refer to REMOVING THE MIRROR TRIANGLE COVER .
Refer to REMOVING THE COVER ON THE DOOR HANDLE .
Refer to REMOVING FRONT DOOR TRIM PANEL .

NOTE: Description is for left component only. Procedure on the right side is identical.

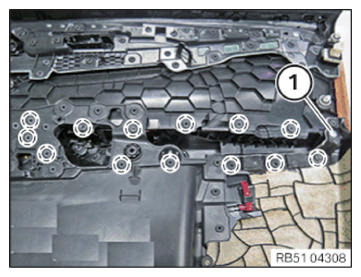

Drill out and/or grind down the spot-welds (1).

Courtesy of BMW OF NORTH AMERICA, INC.

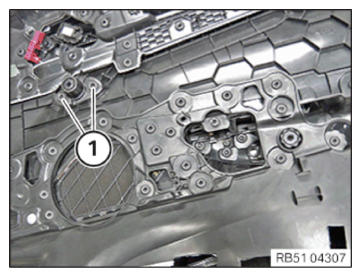

Loosen screw (1).
Drill out or grind down all marked spot-welds.
Remove the armrest.

Courtesy of BMW OF NORTH AMERICA, INC.
