Remove rear side window glass

Preliminary work

• Refer to REMOVING THE WINDOW CHANNEL STRIP FROM THE REAR DOOR .
• Refer to REMOVING THE REAR WINDOW FRAME TRIM .
• Refer to REMOVING THE COVER ON THE DOOR HANDLE .
• Refer to REMOVING THE REAR DOOR TRIM PANEL .
• Refer to REMOVING THE WINDOW CHANNEL STRIP FROM INNER REAR DOOR .
• Refer to PARTIALLY REMOVING THE COVER ON THE WINDOW FRAME .

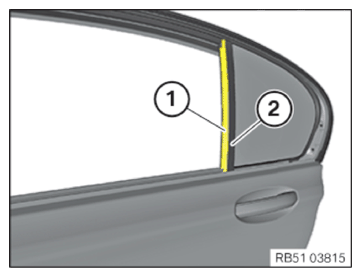

• Pull rubber window seal (1) out of window guide rail (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen screws (1).
• Remove window guide rail (2) out of the door.

  Courtesy of BMW OF NORTH AMERICA, INC.

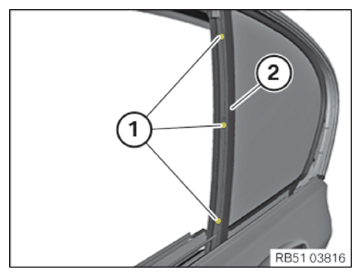

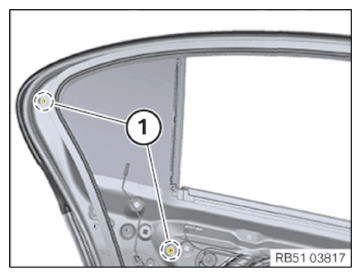

• Loosen screws (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

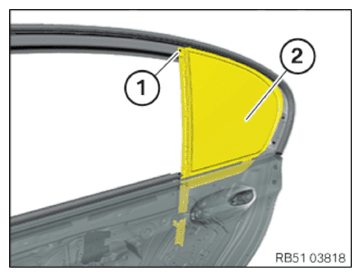

• Loosen screw (1).
• Unclip side window glass (2) out of door at the top.
• Turn side window glass (2) to the front by 90° and lift out of the door to the top,

  Courtesy of BMW OF NORTH AMERICA, INC.
