Check compression of all cylinders
WARNING:
Hot surfaces
.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
Preliminary work
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to RELEASING THE SERVICE OPENING IN SOUND INSULATION ON TOP OF ENGINE .
- Refer to REMOVING ALL IGNITION COILS .
- Refer to REMOVING ALL SPARK PLUGS .
- Refer to REMOVING THE COVER PANEL OF THE DME CONTROL UNIT .
- Refer to DISCONNECTING THE CONNECTOR A46*6B FROM THE CONTROL UNIT .
- Unscrew sensor (1) from special tool 0 490 615 (11 0 222) .
- Check the secure fit of the valve below.
- Prepare special tool 0 490 615 (11 0 222) in conjunction with the special tool 0 496 306 (118 732) and 0 496 107 (11 8 730) .
- Screw special tool 0 490 615 (11 0 222)
with 10 Nm
on the special tool 0 496 107 (11 8 730)
.
- Connect special tool 2 410 242 to special tool 0 490 613 (11 0 220) with the bayonet closure .
- 100-bar sensor
100-bar sensor
100-bar sensor
81 31 2 357 801
- Screw hand-tight into special tool 2 410 242 .
- 100-bar sensor
100-bar sensor
100-bar sensor
81 31 2 357 801
- Connect with the IMIBR2
IMIBR2
IMIBR2
81 38 2 295 937

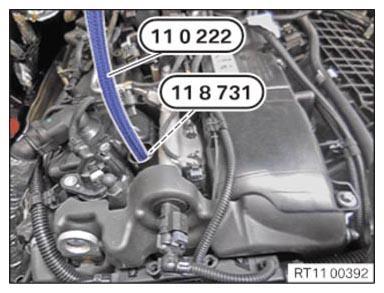

- Manually screw the special tool 0 490 615 (11 0 222)
with the special tool 0 496 305 (11 8 731)
into the spark plug thread.
- Observe diagnosis instructions.
Follow-up work
- Refer to CONNECTING CONNECTOR A46*6B TO THE CONTROL UNIT .
- Refer to INSTALLING THE COVER OF THE DME CONTROL UNIT .
- Refer to INSTALLING ALL SPARK PLUGS .
- Refer to INSTALLING ALL IGNITION COILS .
- Refer to MOUNTING THE SERVICE OPENING IN THE SOUND INSULATION ON TOP OF THE ENGINE .
- Refer to INSTALLING ACOUSTIC COVER .
