Installing acoustic cover at rear

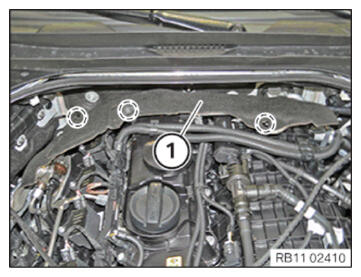

• Make sure acoustic cover (1) is correctly positioned on rear side of engine.

  Courtesy of BMW OF NORTH AMERICA, INC.

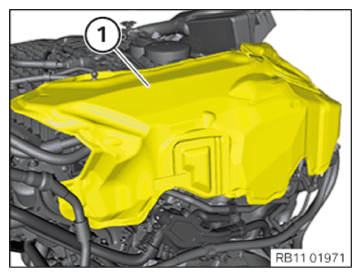

• Install the acoustic cover (1) from the top and clip it in into the marked areas.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE REAR HOOD SEAL .
• Refer to INSTALLING ACOUSTIC COVER .
