Remove the decorative strip on the right dashboard

NOTE: RISK OF DAMAGE
Careless handling of tools and sharp-edged components. Scratches, surface damage.

Protect working area.
Handle tools and components carefully.

Preliminary work

Refer to REMOVING THE SIDE PANEL ON THE RIGHT DASHBOARD .

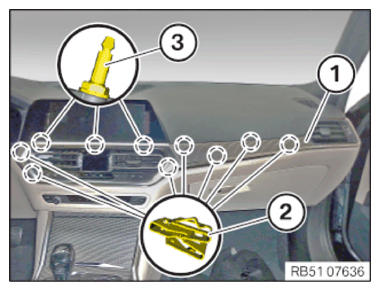

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Unclip the decorative strip (1) toward the rear at the clamps (2) and pins (3).
Unlock associated plug connection and disconnect.
Remove decorative strip (1).

Courtesy of BMW OF NORTH AMERICA, INC.
