Installing the storage net

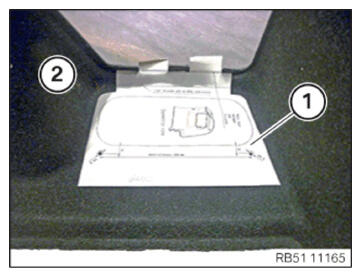

• Measure the reference dimension on the template (1) and cut it out as shown.
• Place the template (1) as shown on the luggage compartment wheel arch trim panel (2) and fasten it with adhesive tape.
• Drill holes all the way through at the marks using the 0 6.5 mm drill bit from the special tools 5 A63 022.
• Remove the template (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

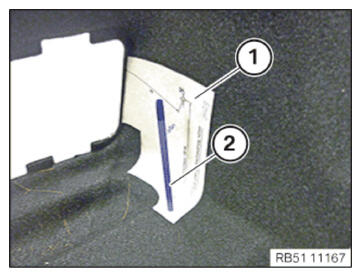

• Measure the reference dimension on the template (1) and cut it out as shown.
• Fix the template (1) as shown with a standard pencil (2) on the bore that is already placed.
• Drill holes all the way through at the marks using the 0 5.5 mm drill bit from the special tools 5 A63 022.
• Remove the template (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

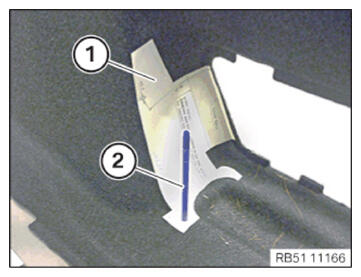

• Measure the reference dimension on the template (1) and cut it out as shown.
• Fix the template (1) as shown with a standard pencil (2) on the bore that is already placed.
• Drill holes all the way through at the marks using the 0 5.5 mm drill bit from the special tools 5 A63 022.
• Remove the template (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.
• Screw in the holder (1) in the bores 0 6.5 mm.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.
• Insert the storage net (1) at the top as shown and snap it in correctly in the bottom holders.

  Courtesy of BMW OF NORTH AMERICA, INC.

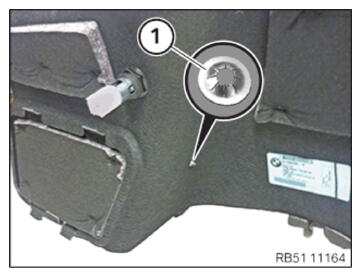

• Install the lock washer (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE 12 V SOCKET IN THE LUGGAGE COMPARTMENT .
• Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON RIGHT .
• Refer to INSTALLING LOADING EDGE TRIM .
• Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
