66 31 010 Instructions for radar sensor adjustment device
Requirements for the measurement area for ACC adjustment device

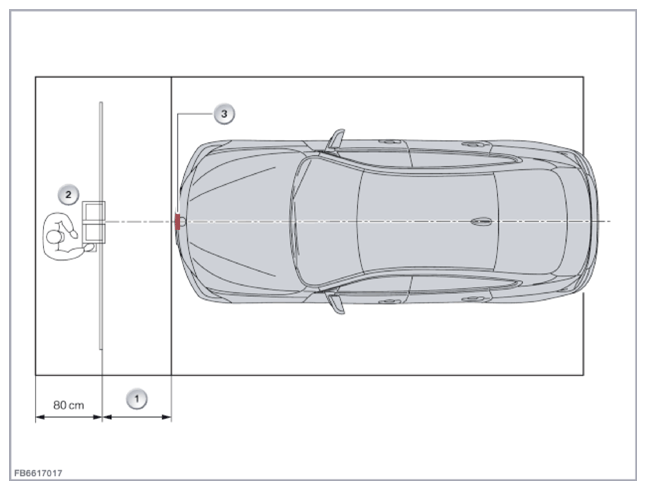

Dimensions:
- Area behind the mirror of at least 80 cm that cane be entered
The distance (1) between the front radar sensor/front radar sensor long range and mirror that is required for the correct setting can be found in the vehicle-specific service function.
- Total area of work area 360 cm x 660 cm
Maximum irregularity of floor surface:
- Floor surface - adjustment device < 1 mm
- Floor surface - vehicle < 10 mm
Maximum angle of inclination of floor surface - vehicle:
- Downward incline of floor surface maximum 3°, see graphic above (1)
- Upward incline of floor surface maximum 1°, see graphic above (2)
NOTE:
Setting up the ACC adjustment device (one-off task) comprises the following steps:
- Assembly of adjustment device
- Assembly of rail
- Basic setting of adjustment device on measurement area
Detailed setup and operating instructions are enclosed with every ACC adjustment device.
