51 24 Tailgate Latch, Locks
>>
51 24 300 Removing and installing/replacing the gas pressure spring for tailgate on the left or right
>>
Installing the gas pressure spring for tailgate
Installing the gas pressure spring for tailgate

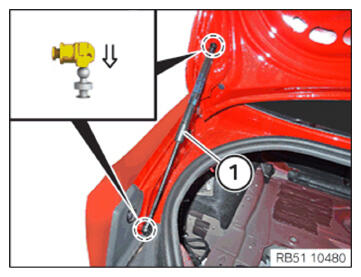

Position gas pressure spring for tailgate (1) with the ball sockets on the ball hubs and snap it in with force.
