Installing the model inscription at the rear
CAUTION:
Laser beam.
Injury hazard!
Injury hazard!
- Do not look into the laser beam.
- Park the vehicle and the special tool 2 407 566 on a flat and even surface.
- Mount the laser on the tripod.
- Switch on laser (Position without automatic level).
- Activate laser horizontally and vertically.
- Place special tool behind the vehicle and center.

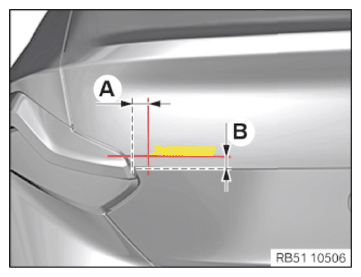

- Align the vertical laser beam according to the predefined dimension.TECHNICAL DATA SPECIFICATION
Model designation on trunk lid Dimension A from corner of trunk lid 30 mm - Align the horizontal laser beam according to the predefined dimension.TECHNICAL DATA SPECIFICATION
Model designation on trunk lid Dimension A from horizontal edge of trunk lid 23 mm - Clean the adhesive area with cleaning agent R2.CONSUMABLE SPECIFICATION
Cleaning agent R2 500 ml 83190417324 TECHNICAL DATA SPECIFICATIONAir drying time after cleaning Cleaning agent R2 2 min - Replace the model nameplate.
Parts: Model nameplate
- Detach the liner from the adhesive strip of the model inscription on the left.
- Align the model inscription on the left with the laser beams as shown, position it on the tailgate and press on it.
- Position special tool behind vehicle.

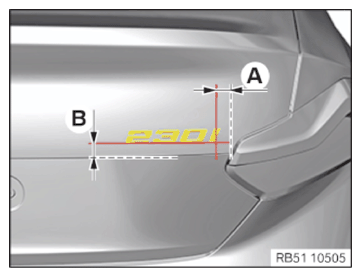

- Align the vertical laser beam according to the predefined dimension.TECHNICAL DATA SPECIFICATION
Model designation or trunk lid Dimension A from corner of trunk lid 30 mm - Align the horizontal laser beam according to the predefined dimension.TECHNICAL DATA SPECIFICATION
Model designation on trunk lid Dimension B from horizontal edge of trunk lid 23 mm - Clean the adhesive area with cleaning agent R2.CONSUMABLE SPECIFICATION
Cleaning agent R2 500 ml 83190417324 TECHNICAL DATA SPECIFICATIONAir drying time after cleaning Cleaning agent R2 2 min - Replace the model nameplate.
Parts: Model nameplate
- Detach the liner from the adhesive strip of model inscription on the right.
- Align the model inscription on the right with the laser beams as shown, position it on the tailgate and press on it.
