Wire starter for window final assembly
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Wire starter for window final assembly
Order number: 83 30 2 336 541

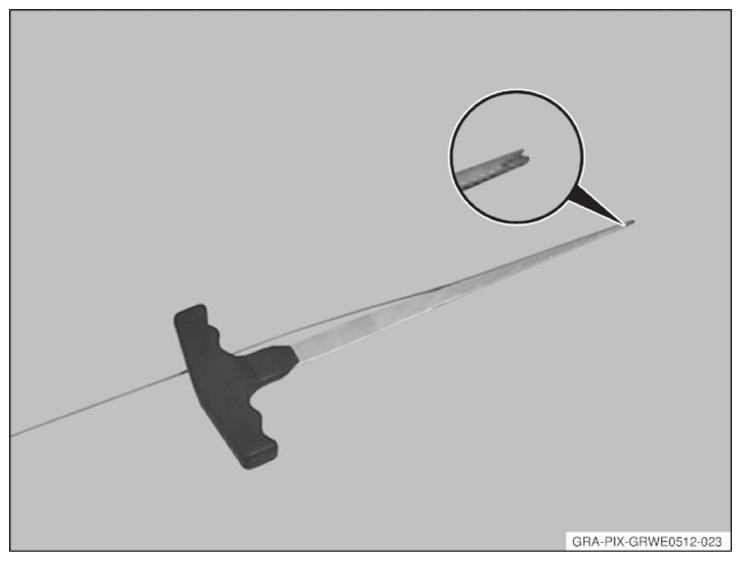

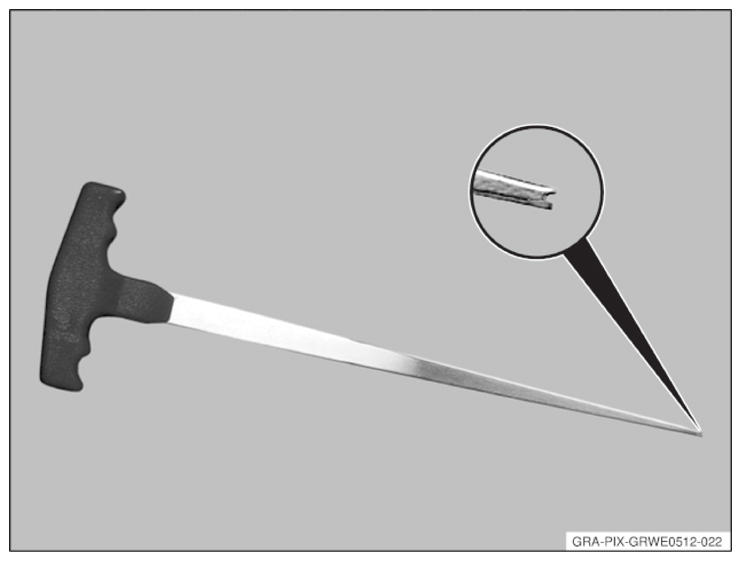

The wire starter with a "T" handle has a sturdy steel blade. The wire is inserted in the notched point and pushed through the adhesive bead with constant pressure.
NOTE:
The wire required for the cutting out of the vehicle glass is ordered using the order number 83 192 150 267, see "applicable BMW parts catalogue".
Example application:

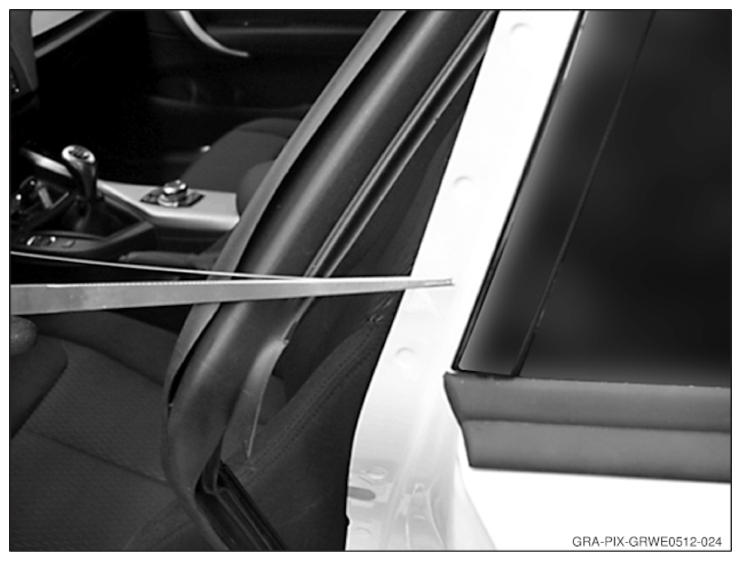

Application example showing F21 side window.
